Nason >> Nason Piston & pin set - 6P1176-0.50

Nason Piston & pin set - 6P1176-0.50

Part
Nason logo

Nason Piston & pin set - 6P1176-0.50

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 87.50mm
Size: 0.50mm / .020"

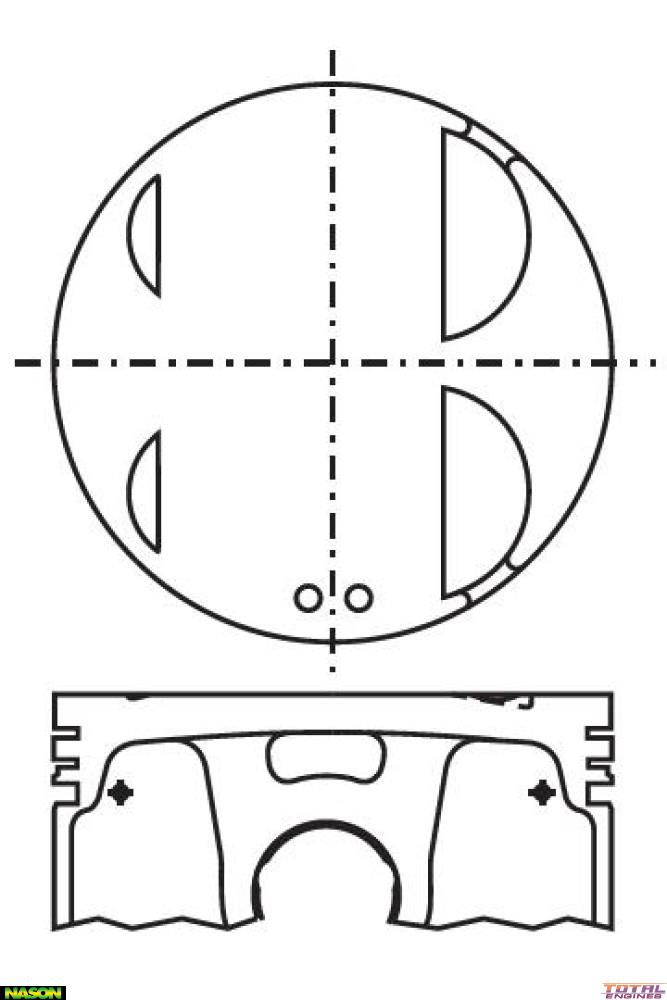

Head Type: Flat Top with 4 Valve Reliefs
Piston Type: Cast
Length: 51.20mm
Comp Height: 31.20mm
Pin Size: 22.00mm x 54.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 3.00mm
Ring Set: 2C4902

Description

Anodized Head, Top & 2nd Ring Lands

Replaces 6MKRY7004
