Nason >> Nason Piston & pin set - 6P1177-0.50

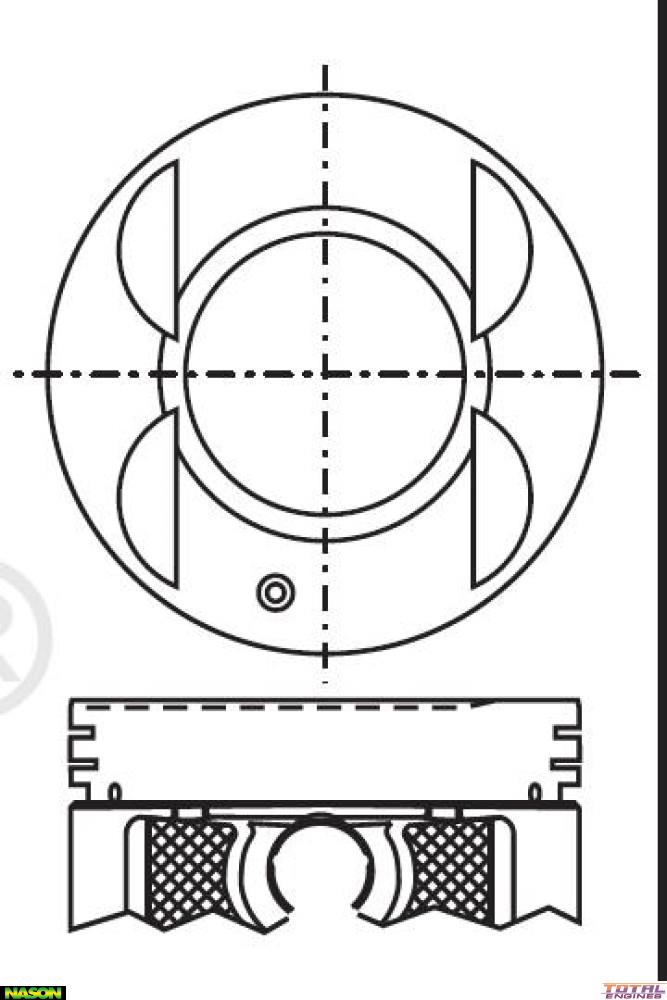

Nason Piston & pin set - 6P1177-0.50

Part
Nason logo

Nason Piston & pin set - 6P1177-0.50

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 92.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 54.50mm
Comp Height: 31.20mm - 0.60mm
Pin Size: 22.00mm x 56.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 3.00mm
Ring Set: 2C5183

Description

Anodized Head, Top & 2nd Ring Lands

Replaces 6MKRY7005
