Nason >> Nason Piston & pin set - 6P1184-1.00

Nason Piston & pin set - 6P1184-1.00

Part
Nason logo

Nason Piston & pin set - 6P1184-1.00

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 93.40mm
Size: 1.00mm / .040"

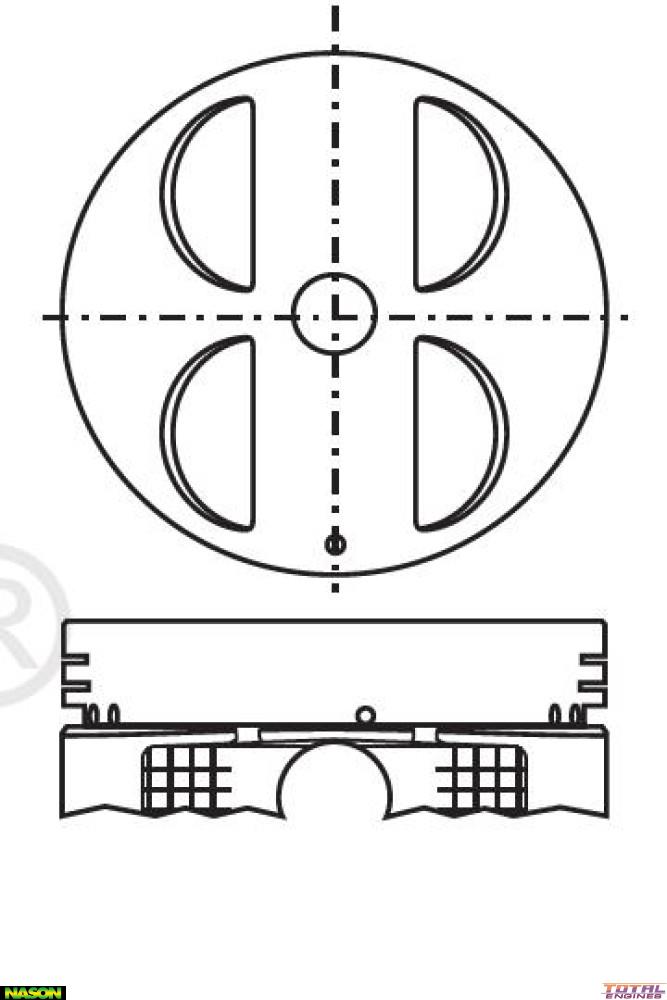

Head Type: Flat Top with 4 Valve Reliefs
Piston Type: Cast
Length: 62.20mm
Comp Height: 31.70mm
Pin Size: 22.00mm x 66.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C4791

Description

Replaces 6MKRY2994, 6MKRY7022
