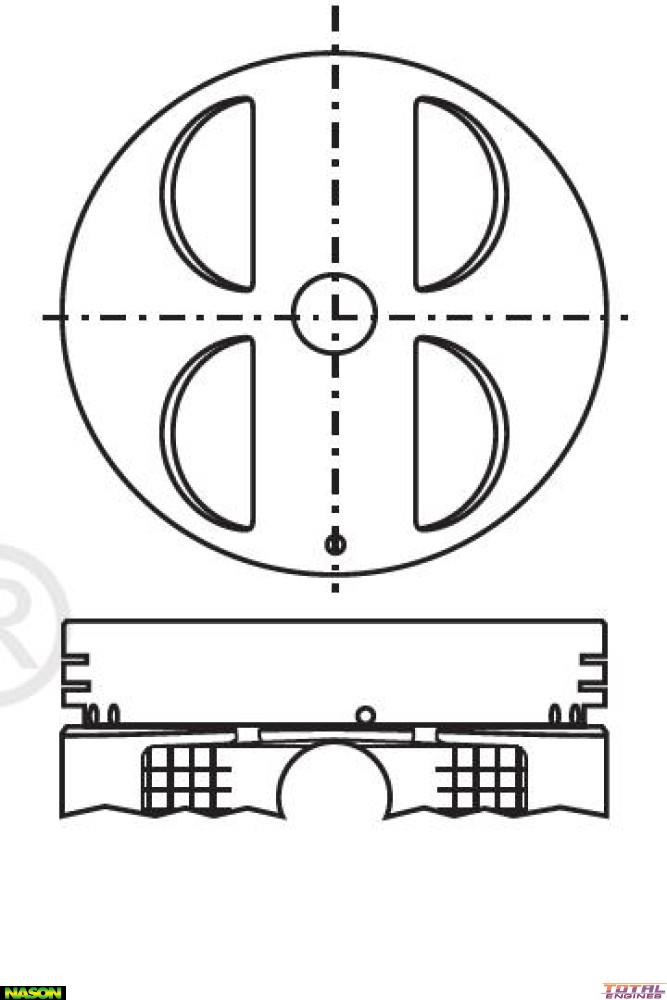

Nason Piston & pin set - 6P1184-STD

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	93.40mm
Size:	Std
Head Type:	Flat Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	62.20mm
Comp Height:	31.70mm
Pin Size:	22.00mm x 66.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2C4791
Size:	Suits Flat Top 31.70mm Complete Height
