Nason Piston & pin set - 6P1186-0.50

Part

Nason Piston & pin set - 6P1186-0.50

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	93.40mm
Size:	0.50mm / .020"

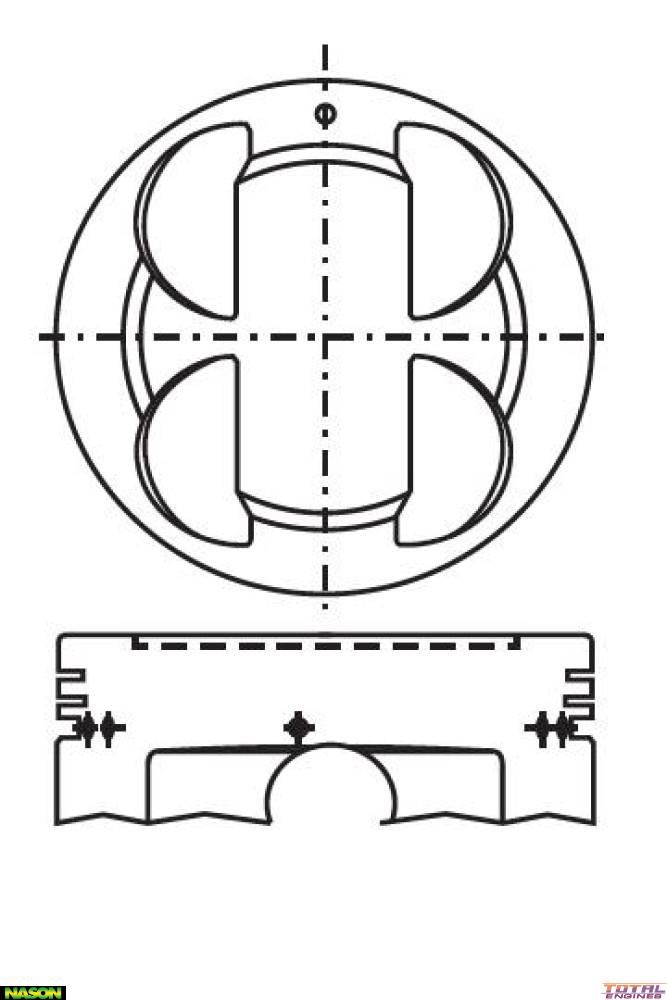

Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	65.10mm
Comp Height:	31.70mm - 0.70mm
Pin Size:	22.00mm x 66.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2M4945
Size:	0.50mm Oversize

Description

Comp Height 31.70mm
