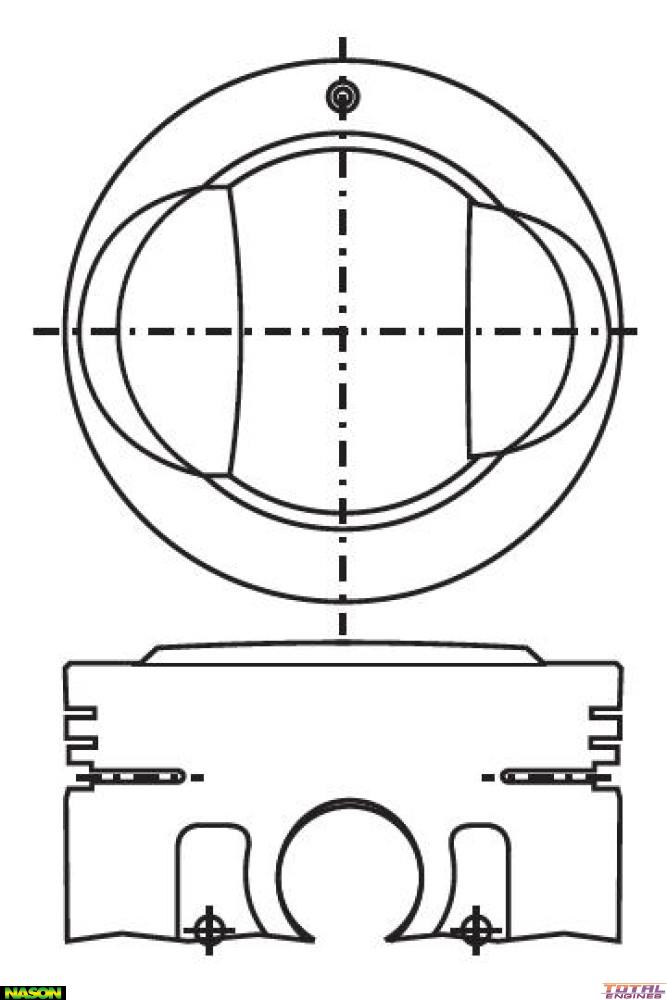

Nason Piston & pin set - 6P1224-STD

Part

Nason Piston & pin set - 6P1224-STD

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	83.00mm
Head Type:	Dome Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	74.10mm
Comp Height:	33.00mm + 3.30mm
Pin Size:	22.00mm x 66.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2M6162 or 6162
