Nason >> Nason Piston & pin set - 6P1225-0.50

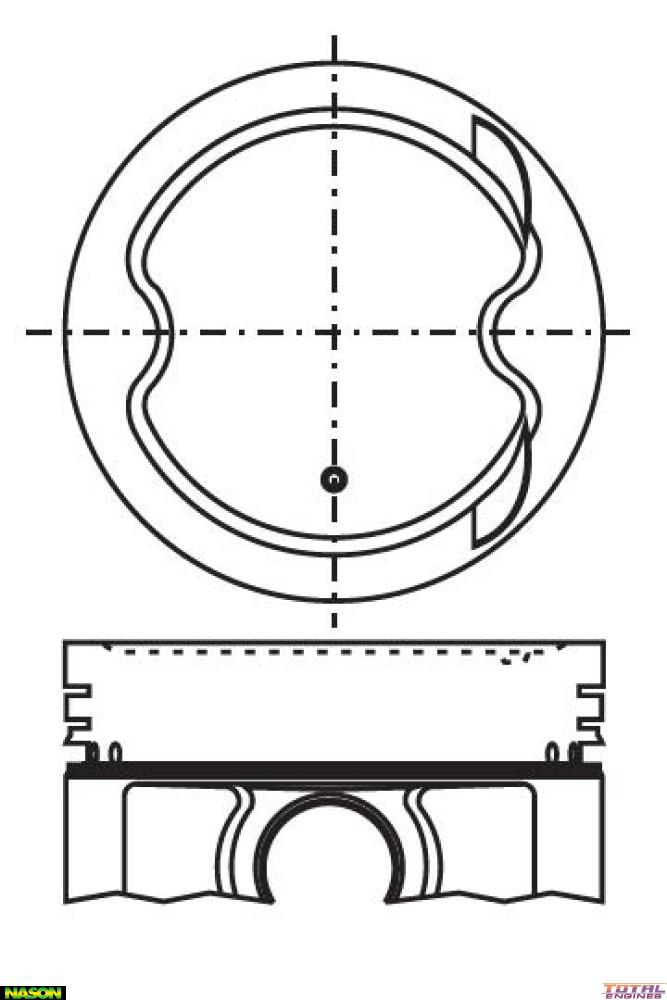

Nason Piston & pin set - 6P1225-0.50

Part
Nason logo

Nason Piston & pin set - 6P1225-0.50

$649.94

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 100.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 76.00mm
Comp Height: 42.00mm - 2.10mm
Pin Size: 26.00mm x 62.70mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C4776 or 4776

Description

76.00mm Length Piston, FZJ70, FZJ75, FZJ80

Anodized Head, Top & 2nd Ring Lands

Replaces 6MKRY2991
