Nason >> Nason Piston & pin set - 6P1226-STD

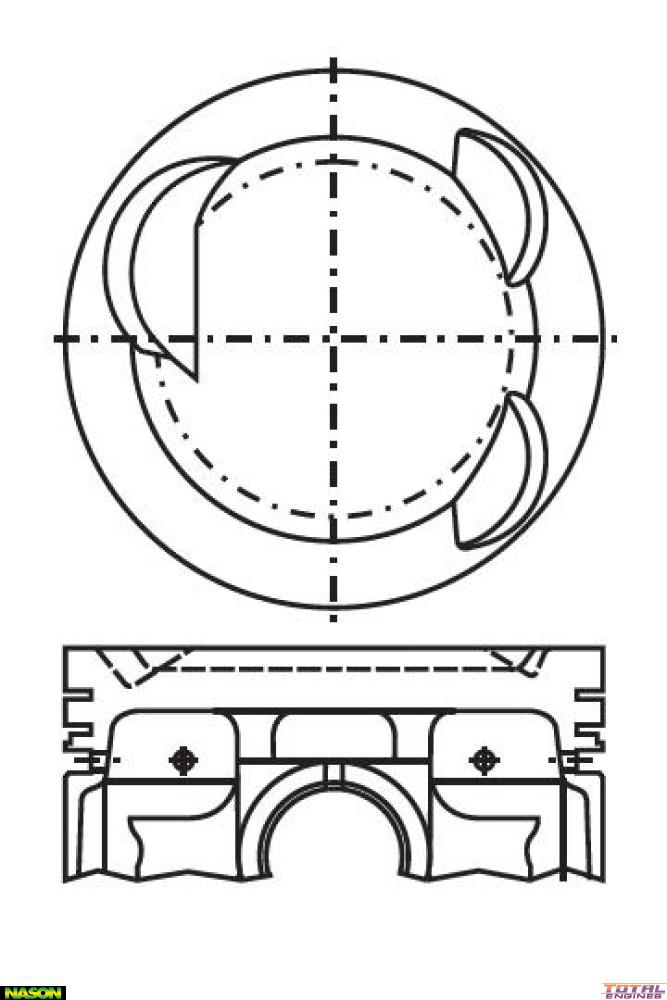

Nason Piston & pin set - 6P1226-STD

Part
Nason logo

Nason Piston & pin set - 6P1226-STD

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 90.00mm
Size: Std
Head Type: Dish Top with 3 Valve Reliefs
Piston Type: Cast
Length: 74.00mm
Comp Height: 35.50mm - 3.60mm
Pin Size: 23.00mm x 77.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4679

Description

Replaces 6MKRY7001
