Nason >> Nason Piston & pin set - 6P1229-1.00

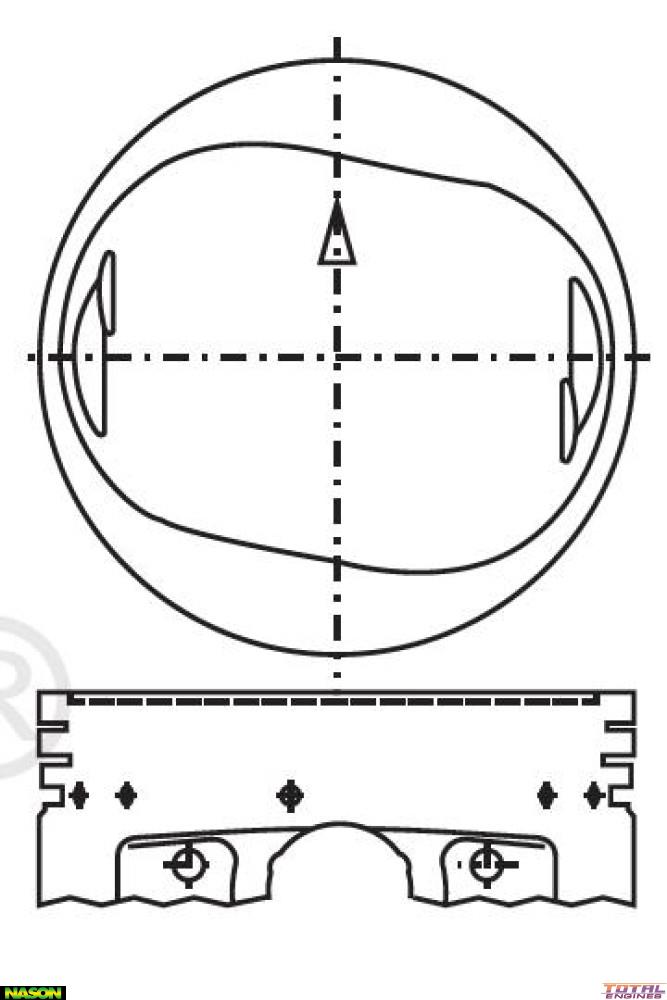

Nason Piston & pin set - 6P1229-1.00

Part
Nason logo

Nason Piston & pin set - 6P1229-1.00

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 91.10mm
Size: 1.00mm / .040"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 65.90mm
Comp Height: 31.90mm - 0.30mm
Pin Size: 22.00mm x 64.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4670

Description

Comp Height 31.90mm Bowl Depth - 0.30mm

Replaces 6MKRY8026
