Nason Piston & pin set - 6P1231-0.50

Part

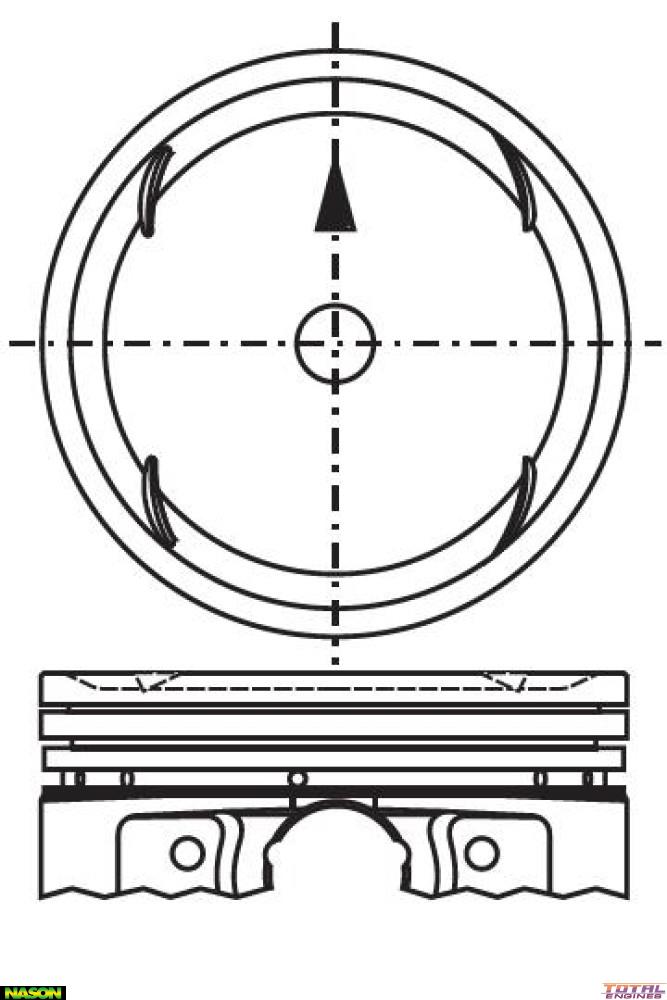

Nason Piston & pin set - 6P1231-0.50

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	91.10mm
Size:	0.50mm / .020"
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	65.70mm
Comp Height:	31.80mm - 2.50mm
Pin Size:	22.00mm x 64.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2C4670
Size:	0.50mm Oversize

Description

31.80mm Comp Height
