Nason >> Nason Piston & pin set - 6P1288-1.00

Nason Piston & pin set - 6P1288-1.00

Part
Nason logo

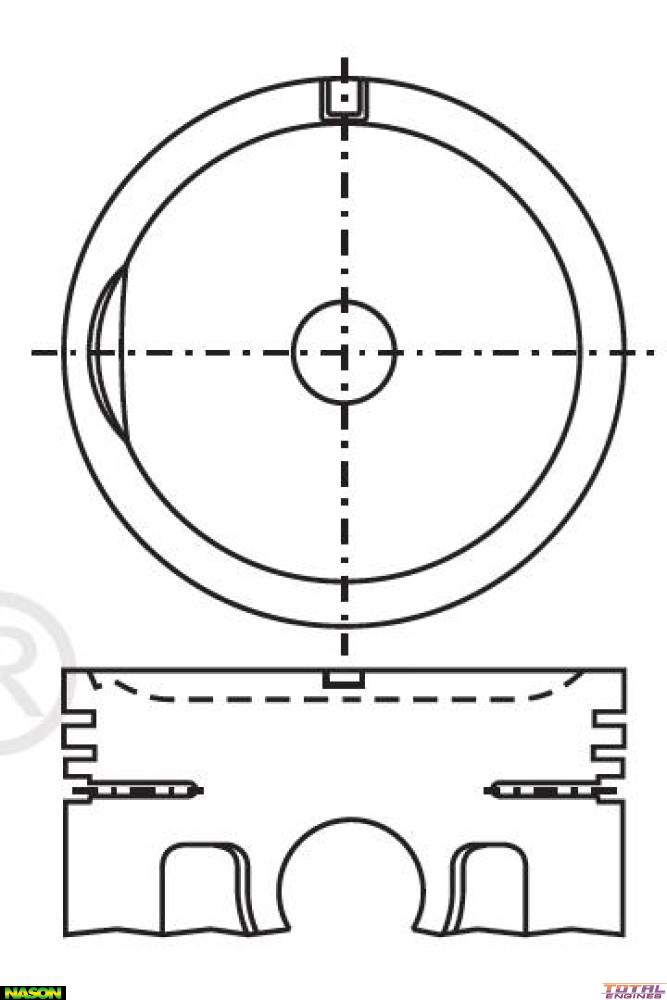

Nason Piston & pin set - 6P1288-1.00

$204.52

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 83.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 1 Valve Reliefs
Piston Type: Cast
Length: 71.00mm
Comp Height: 33.00mm - 3.90mm
Pin Size: 22.00mm x 66.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 5782
Size: 1.00mm Oversize
