Nason Piston & pin set - 6P1291-0.50

Part

Nason Piston & pin set - 6P1291-0.50

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	89.00mm
Size:	0.50mm / .020"

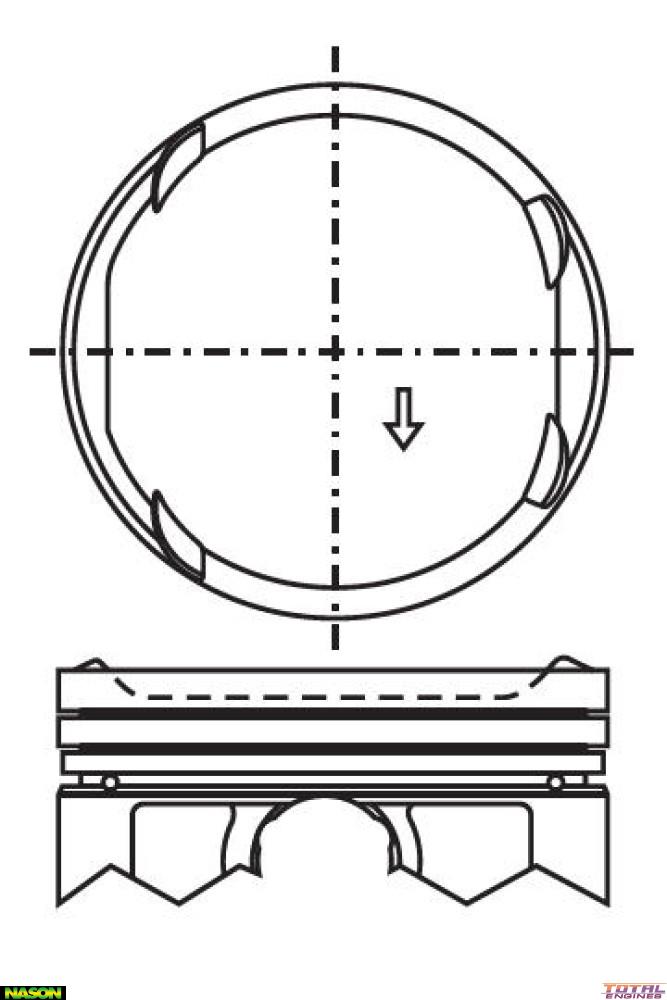

Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	51.30mm
Comp Height:	29.70mm - 0.30mm
Pin Size:	21.97mm x 54.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.80mm
Ring Set:	2C4972
Size:	0.50mm Oversize
