Nason >> Nason Piston & pin set - 6P1293-STD

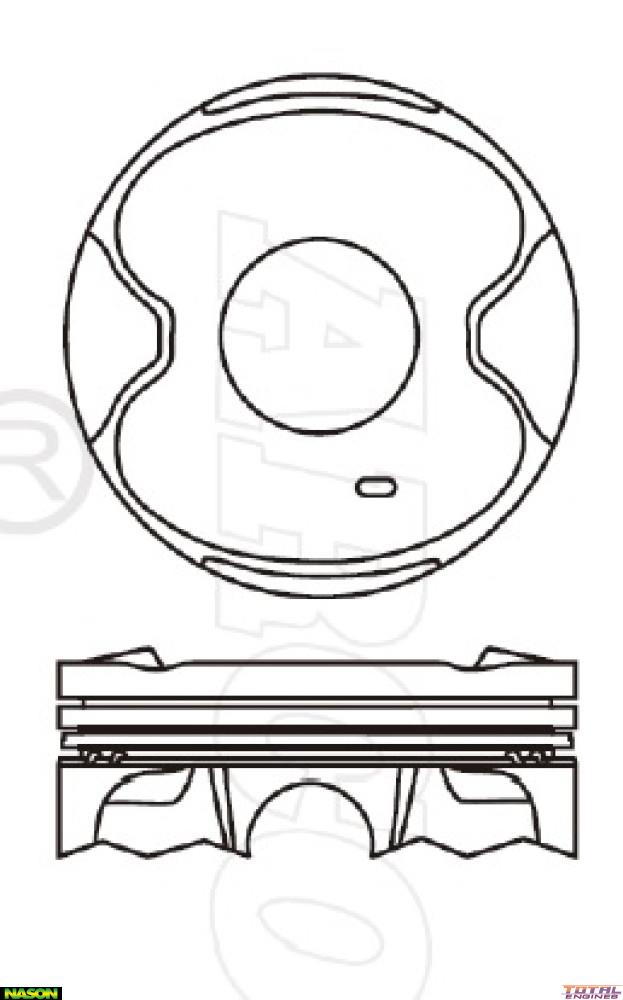

Nason Piston & pin set - 6P1293-STD

Part
Nason logo

Nason Piston & pin set - 6P1293-STD

Out Of Stock

Specifications
Ring Set: 2C5151
Oil Ring Width: 2.00mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 22.00mm x 56.00mm
Comp Height: 32.80mm - 3.80mm
Length: 54.70mm
Piston Type: Cast
Head Type: Dish Top
Size: Std
Std Bore Size: 94.00mm
Piston Set: 6 x Piston & Pins

Description

Suits GRJ150 GSJ15 Models

Anodized Head, Top & 2nd Ring Lands
