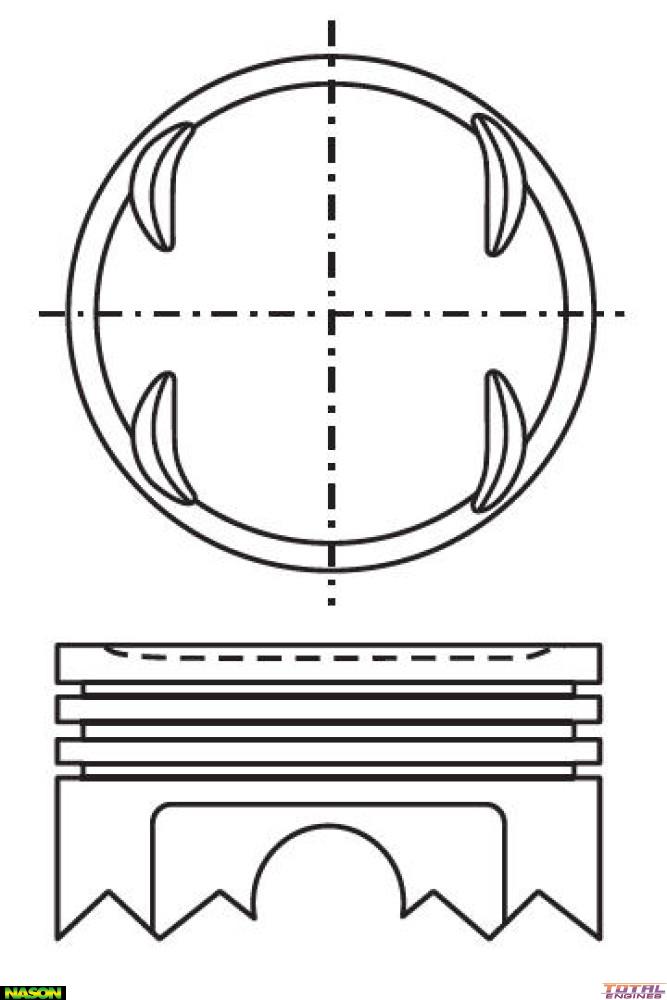

Nason Piston & pin set - 6P1374-1.00

Part

Nason Piston & pin set - 6P1374-1.00

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	92.00mm
Size:	1.00mm / .040"
Head Type:	Dist Top with 4 Valve Relies
Piston Type:	Cast
Length:	52.00mm
Comp Height:	30.70mm - 0.60mm
Pin Size:	23.00mm x 63.00mm
Pin Type:	Press Fit
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.00mm
Ring Set:	2C5260
Size:	1.00mm Oversize

Description

Anodized Head
