Nason Piston & pin set - 6P1376-0.25

Part

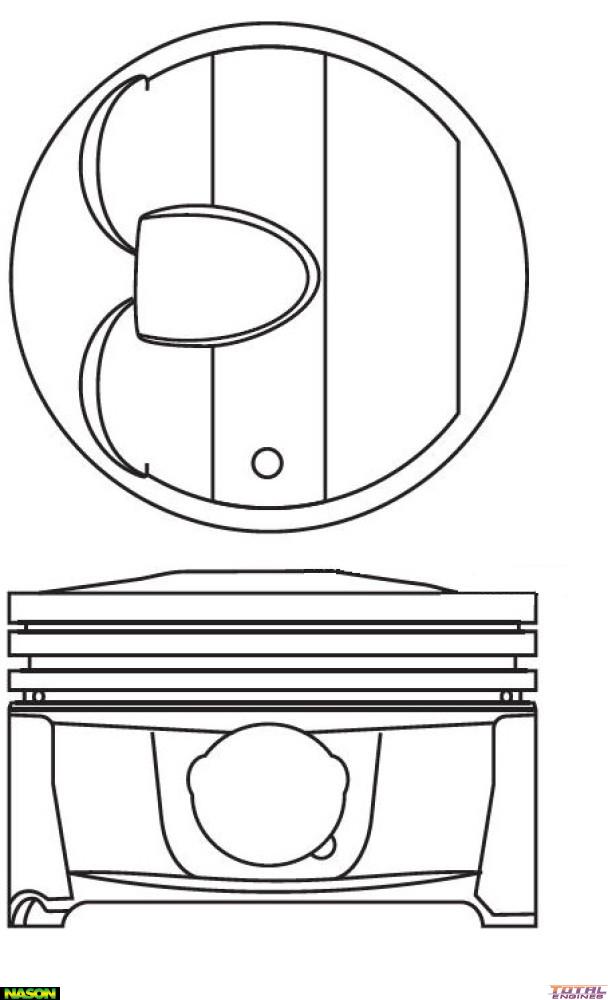

Nason Piston & pin set - 6P1376-0.25

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	89.00mm
Size:	0.25mm / .010"
Head Type:	Dome Top with 2 Valve Relies
Piston Type:	Cast
Length:	56.30mm
Comp Height:	29.00mm + 5.20mm
Pin Size:	24.00mm X 52.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	Minimum 0.035mm
Top Ring Width:	1.00mm
2nd Ring Width:	1.20mm
Oil Ring Width:	1.50mm
Ring Set:	2C5225
Size:	0.25mm Oversize

Description

Anodized Top Ring Groove
