Nason >> Nason Piston & pin set - 6P1377-0.25

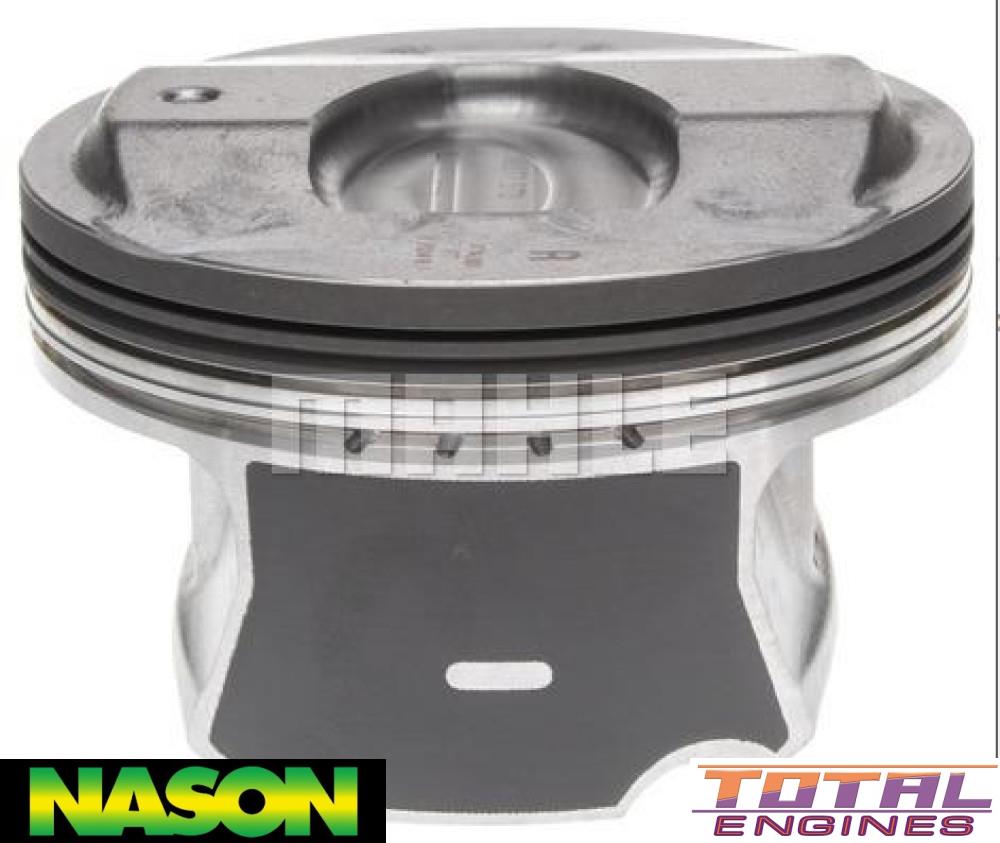

Nason Piston & pin set - 6P1377-0.25

Part
Thumbnail
Thumbnail
Thumbnail
Nason logo

Nason Piston & pin set - 6P1377-0.25

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 94.00mm
Size: 0.25mm / .010"
Head Type: Dome Top with 4 Valve Relies
Piston Type: Cast
Length: 57.15mm
Comp Height: 30.00mm + TBA
Pin Size: 24.00mm x 52.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: Minimum 0.035mm
Top Ring Width: 1.00mm
2nd Ring Width: 1.20mm
Oil Ring Width: 1.50mm
Ring Set: 2C4114

Description

Suits LFX Engine

Anodized Top Ring Groove
