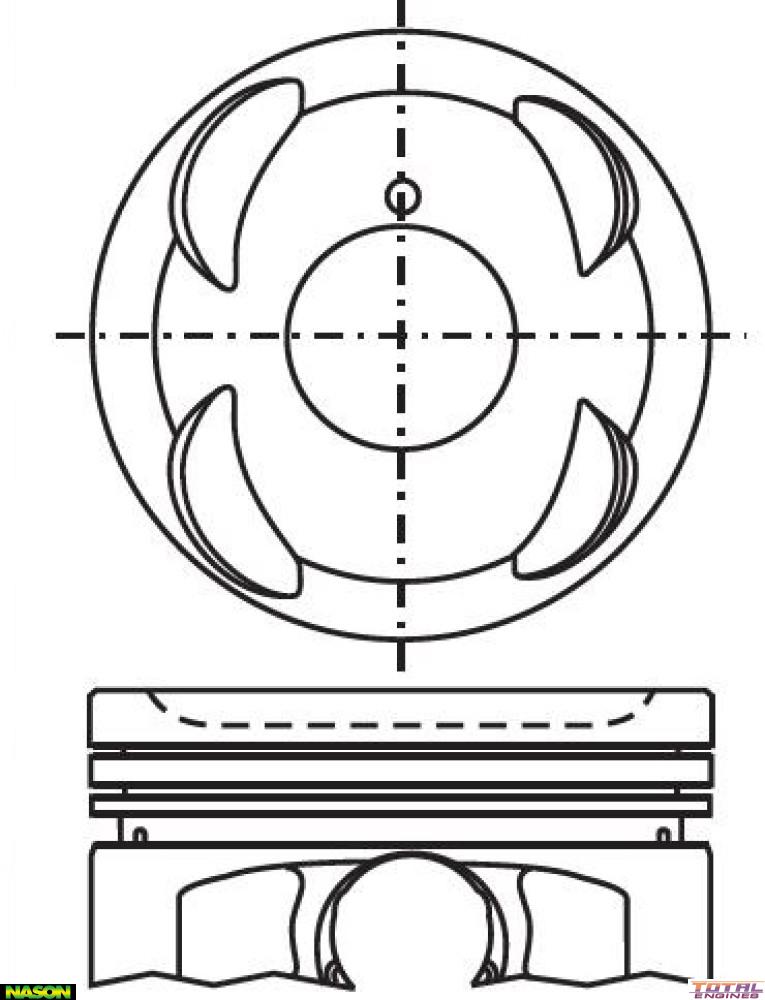

Nason Piston & pin set - 6P1389-1.00

Part

Nason Piston & pin set - 6P1389-1.00

Out Of Stock

Specifications
Size:	1.00mm Oversize
Ring Set:	2C4713
Oil Ring Width:	4.00mm
2nd Ring Width:	1.50mm
Top Ring Width:	1.50mm
Piston to Bore:	See Label on Box
Skirt Coating:	Yes
Pin Type:	Full Floating
Pin Size:	22.00mm X 66.00mm
Comp Height:	34.00mm - 3.60mm
Length:	65.00mm
Piston Type:	Cast
Head Type:	Dish Top with 4 Valve Reliefs
Size:	0.50mm / .020"
Std Bore Size:	86.00mm
Piston Set:	6 x Piston & Pins

Description

Anodized Head With Oil Gallery
