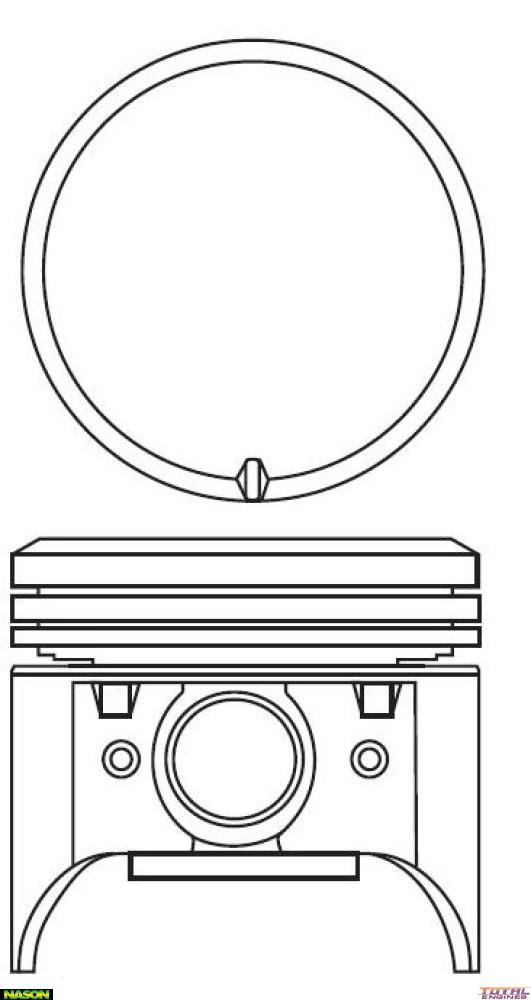

Nason Piston & pin set - 6P1397-1.00

Part

Nason Piston & pin set - 6P1397-1.00

Out Of Stock

Specifications
Size:	1.00mm Oversize
Ring Set:	2M5560 or 5560
Oil Ring Width:	3/16"
2nd Ring Width:	5/64"
Top Ring Width:	5/64"
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Press Fit
Pin Size:	23.40mm x 75.80mm
Comp Height:	43.00mm
Length:	86.20mm
Piston Type:	Cast
Head Type:	Flat Top
Size:	1.00mm / .040"
Std Bore Size:	99.30mm
Piston Set:	6 x Piston & Pins
