Nason >> Nason Piston & pin set - 6P1398-1.00

Nason Piston & pin set - 6P1398-1.00

Part
Nason logo

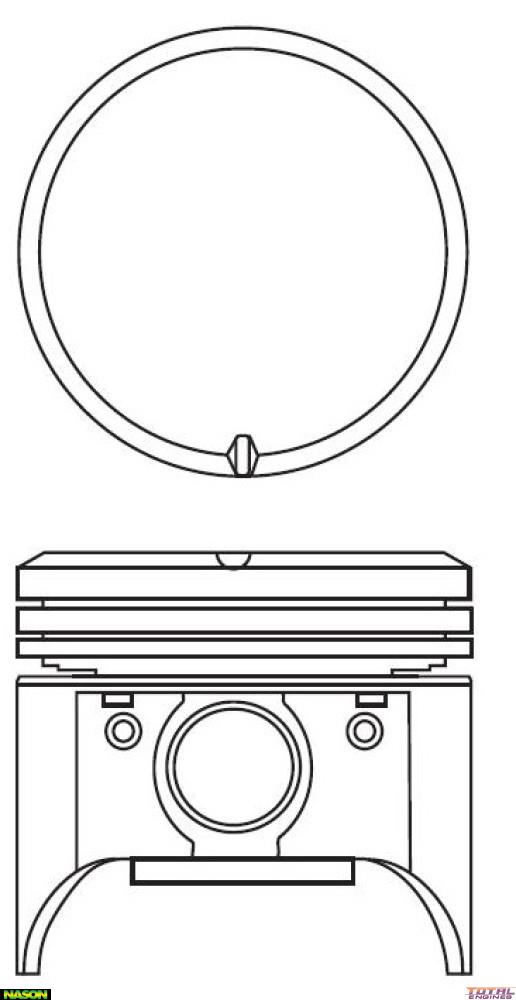

Nason Piston & pin set - 6P1398-1.00

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 95.50mm
Size: 1.00mm / .040"
Head Type: Flat Top
Piston Type: Cast
Length: 86.20mm
Comp Height: 43.00mm
Pin Size: 23.40mm x 75.80mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 5/64"
2nd Ring Width: 5/64"
Oil Ring Width: 3/16"
Ring Set: 2C5586 or 5586

Description
