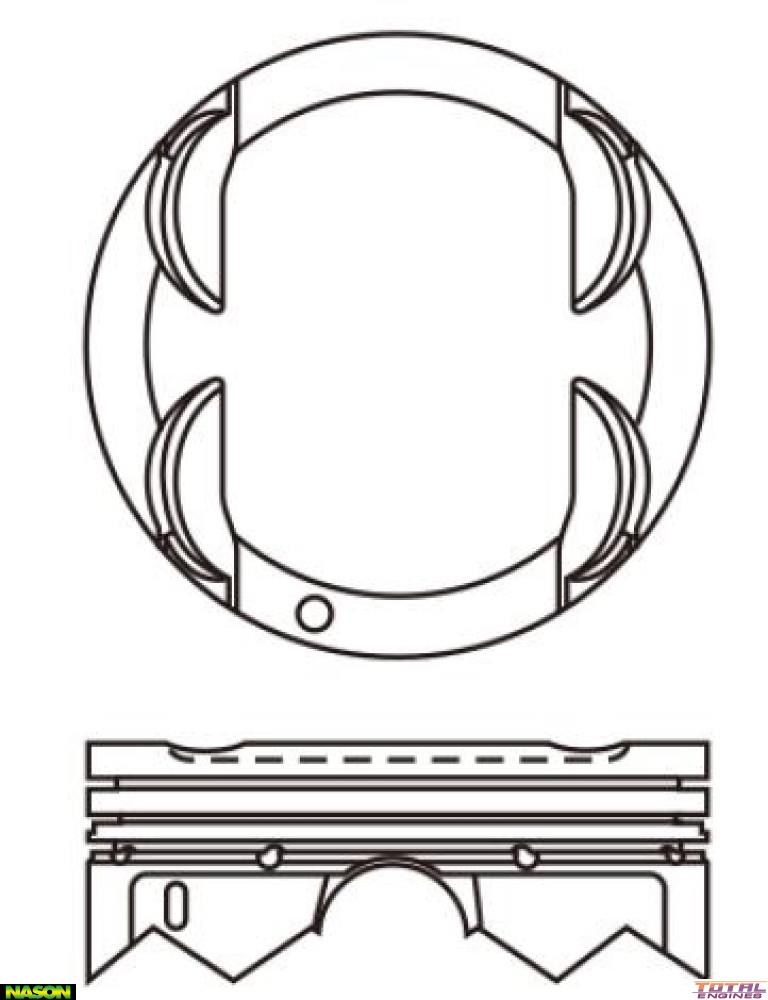

Nason >> Nason Piston & pin set - 6P1410-0.50

Nason Piston & pin set - 6P1410-0.50

Part
Nason logo

Nason Piston & pin set - 6P1410-0.50

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 92.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 50.00mm
Comp Height: 29.10mm - 0.80mm
Pin Size: 22.00mm x 58.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5260

Description

Anodzed Head, Top & 2nd Ring Lands
