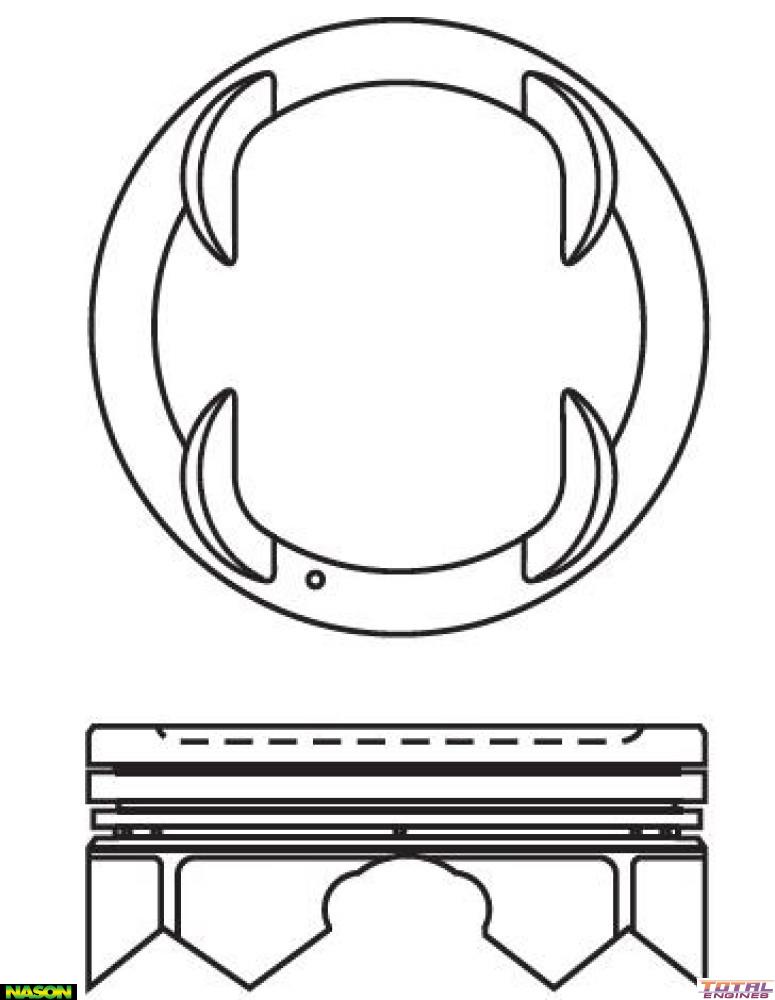

Nason Piston & pin set - 6P1412-0.50

Part

Nason Piston & pin set - 6P1412-0.50

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	96.00mm
Size:	0.50mm / .020"
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	52.00mm
Comp Height:	29.00mm - 2.10mm
Pin Size:	23.00mm x 67.00mm
Pin Type:	Press Fit
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.00mm
Ring Set:	2C4550
Size:	0.50mm Oversize

Description

With 23mm Piston Pin
