Nason Piston & pin set - 6P1420-0.50

Part

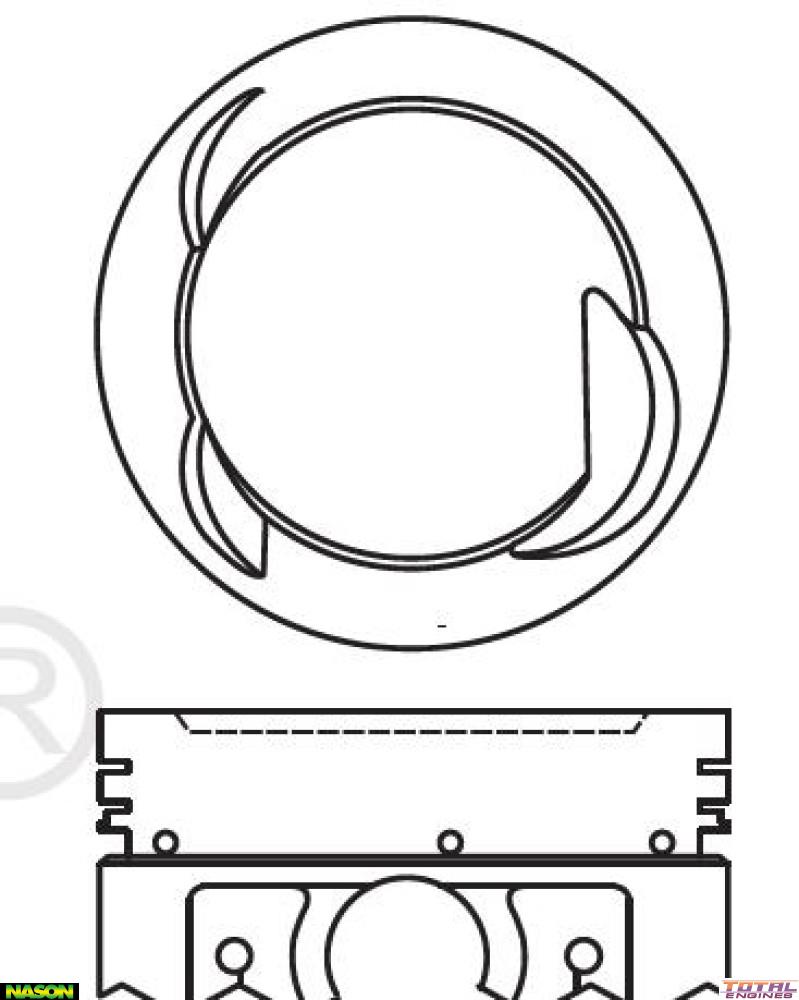

Nason Piston & pin set - 6P1420-0.50

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	90.00mm
Size:	0.50mm / .020"
Head Type:	Dish Top with 3 Valve Reliefs
Piston Type:	Cast
Length:	70.80mm
Comp Height:	35.10mm - 2.80mm
Pin Size:	23.00mm x 63.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2M4679
Size:	0.50mm Oversize
