Nason >> Nason Piston & pin set - 6P1436-0.50

Nason Piston & pin set - 6P1436-0.50

Part
Nason logo

Nason Piston & pin set - 6P1436-0.50

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 86.70mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 54.00mm
Comp Height: 30.50mm - 0.70mm
Pin Size: 21.00mm x 60.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5384-STD

Description

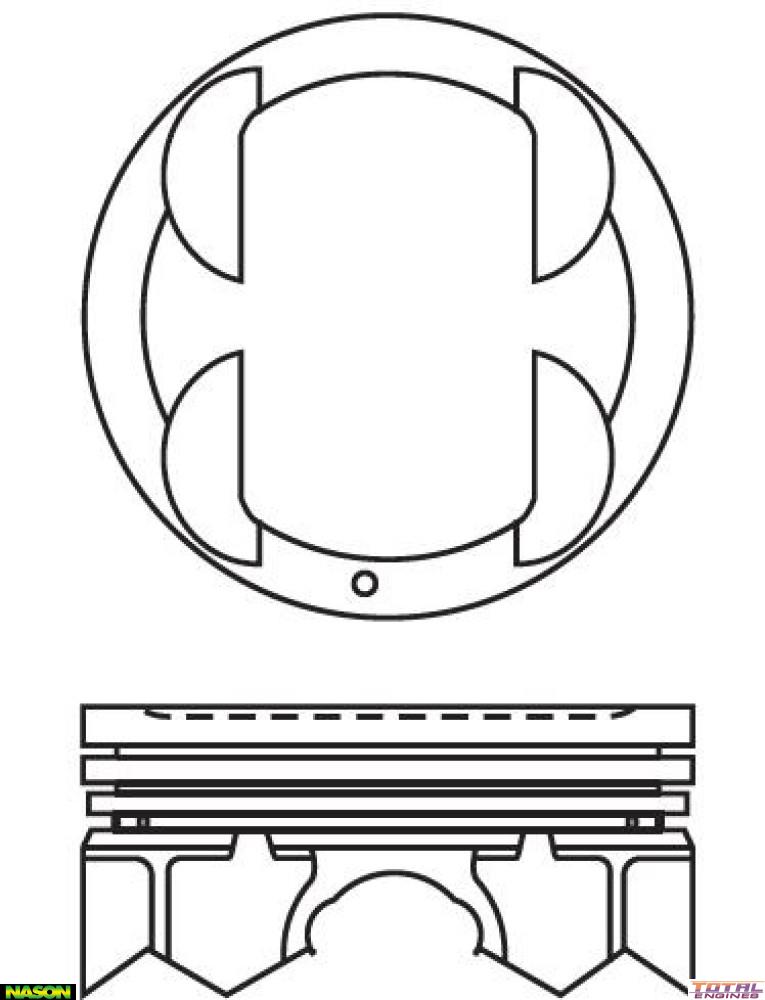

Dish Top With Valve Reliefs
