Nason Piston & Pin Set - 6P1439-0.50

Part

Nason Piston & Pin Set - 6P1439-0.50

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	96.00mm
Size:	0.50mm / .020"

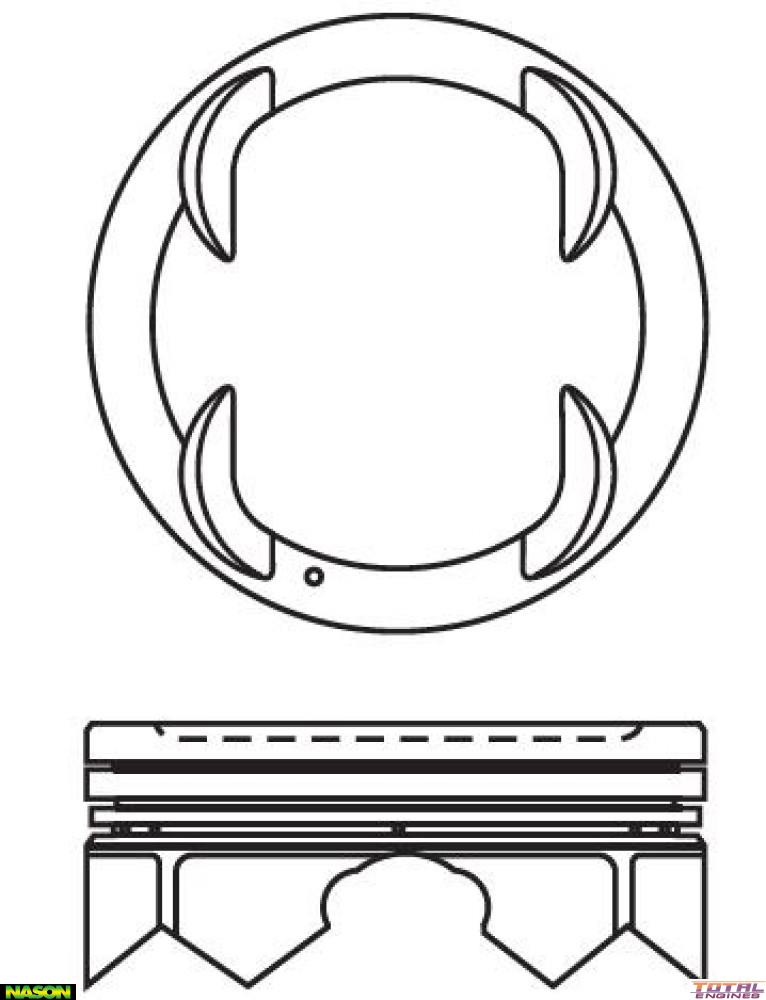

Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	50.40mm
Comp Height:	29.00mm - 2.20mm
Pin Size:	22.00mm x 58.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.00mm
Ring Set:	2C4550
Size:	0.50mm Oversize

Description

With 22mm Piston Pin
