Nason >> Nason Piston & pin set - 8DP2064-0.50

Nason Piston & pin set - 8DP2064-0.50

Part
Nason logo

Nason Piston & pin set - 8DP2064-0.50

$1,245.17

Specifications
Piston Set: 8 x Pistons & Pins
Std Bore Size: 86.00mm
Size: 0.50mm / .020"
Head Type: Combustion Chamber With 4 Valve Reliefs
Piston Type: Cast
Length: 72.00mm

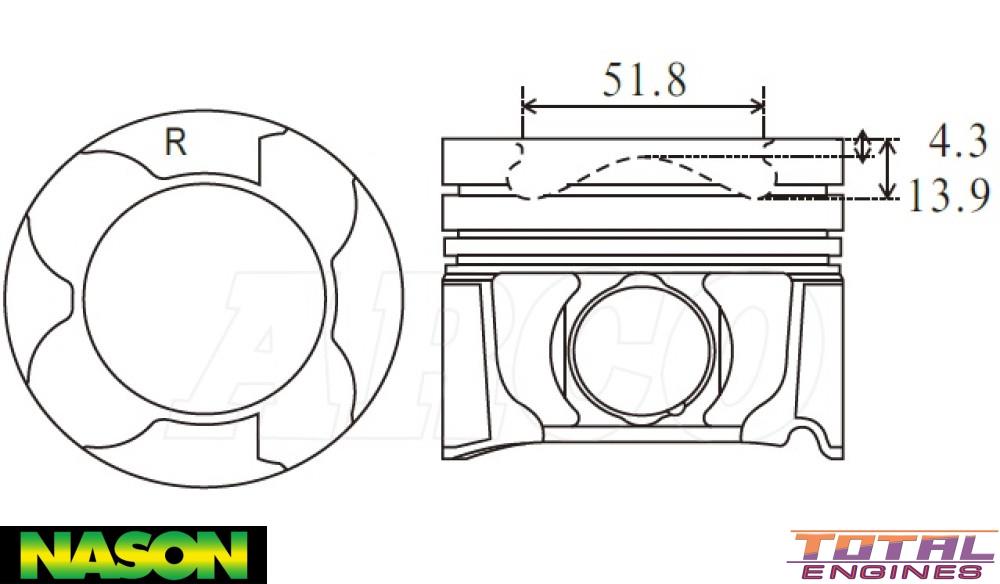

Comp Height: 48.00mm, -4.30mm, -13.90mm
Combustion Bowl OD: 51.80mm
Pin Size: 29.00mm x 69.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.00mm
Ring Set: 36034-0.50

Description

Alfin With Oil Gallery Cooling

Replaces PKT1VD-0.50
