Nason Piston & pin set - 8DP2064-1.00

Specifications
Piston Set:	8 x Pistons & Pins
Std Bore Size:	86.00mm
Size:	1.00mm / .040"
Head Type:	Combustion Chamber With 4 Valve Reliefs
Piston Type:	Cast
Length:	72.00mm

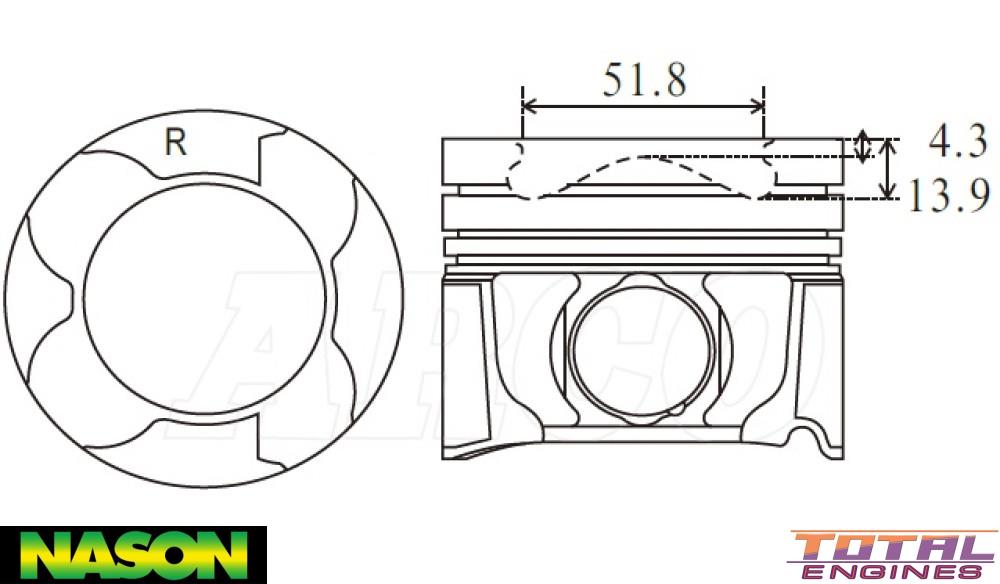

Comp Height:	48.00mm, -4.30mm, -13.90mm
Combustion Bowl OD:	51.80mm
Pin Size:	29.00mm x 69.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	1.50mm
Oil Ring Width:	2.00mm
Ring Set:	36034-1.00
Size:	Oversize 1.00mm

Description

Alfin With Oil Gallery Cooling
