Nason >> Nason Piston & pin set - 8P1178-STD

Nason Piston & pin set - 8P1178-STD

Part
Nason logo

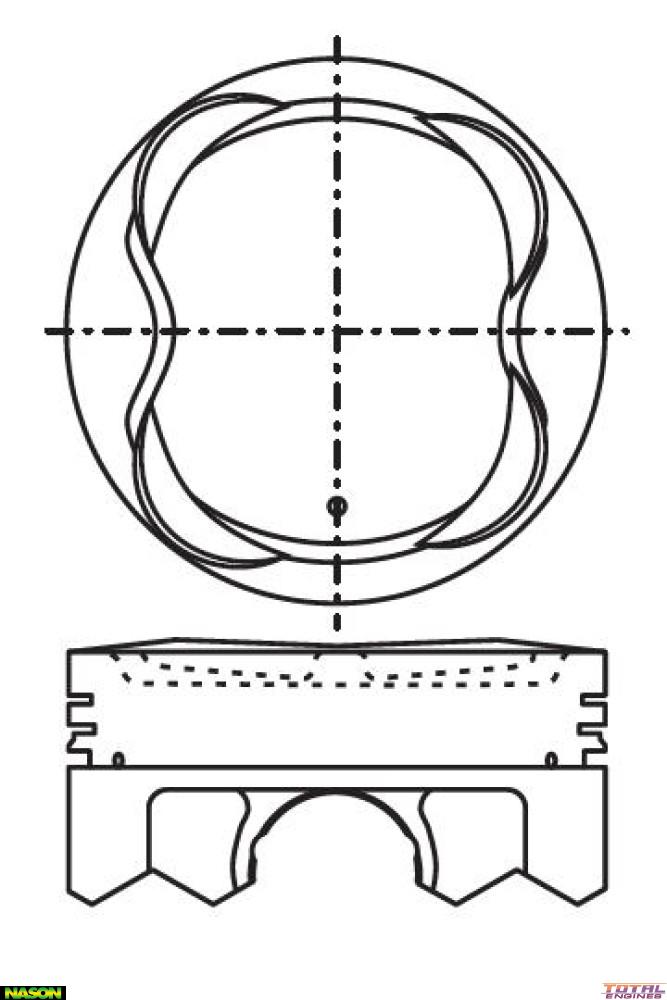

Nason Piston & pin set - 8P1178-STD

$807.59

Specifications
Piston Set: 8 x Piston & Pins
Std Bore Size: 94.00mm
Size: Std
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 57.80mm
Comp Height: 33.80mm - 9.40mm
Pin Size: 22.00mm X 62.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M5017

Description

Anodized Head, Top & 2nd Ring Lands

Replaces 8KRY5008
