Nason Piston & pin set - 8P1386-STD

Part

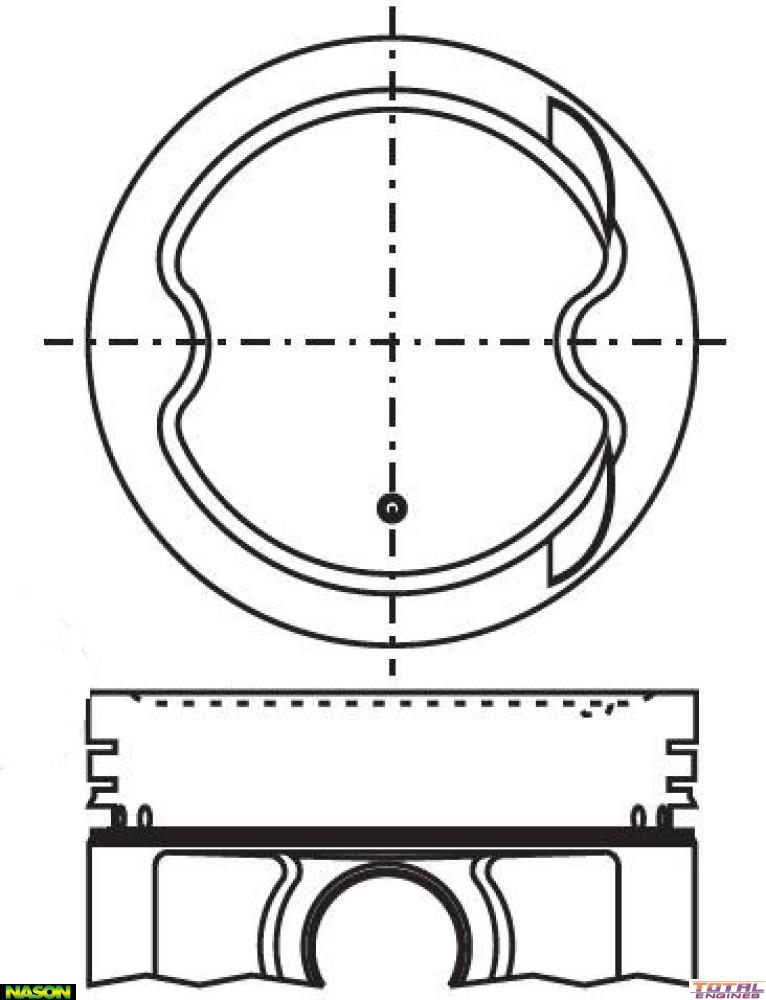

Nason Piston & pin set - 8P1386-STD

Out Of Stock

Specifications
Piston Set:	8 x Piston & Pins
Std Bore Size:	87.50mm
Size:	Std
Head Type:	Dish Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	65.00mm
Comp Height:	34.00mm - 0.50mm
Pin Size:	22.00mm X 62.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2M4678
