Nason >> Nason Piston & pin set - 8P1470-0.50

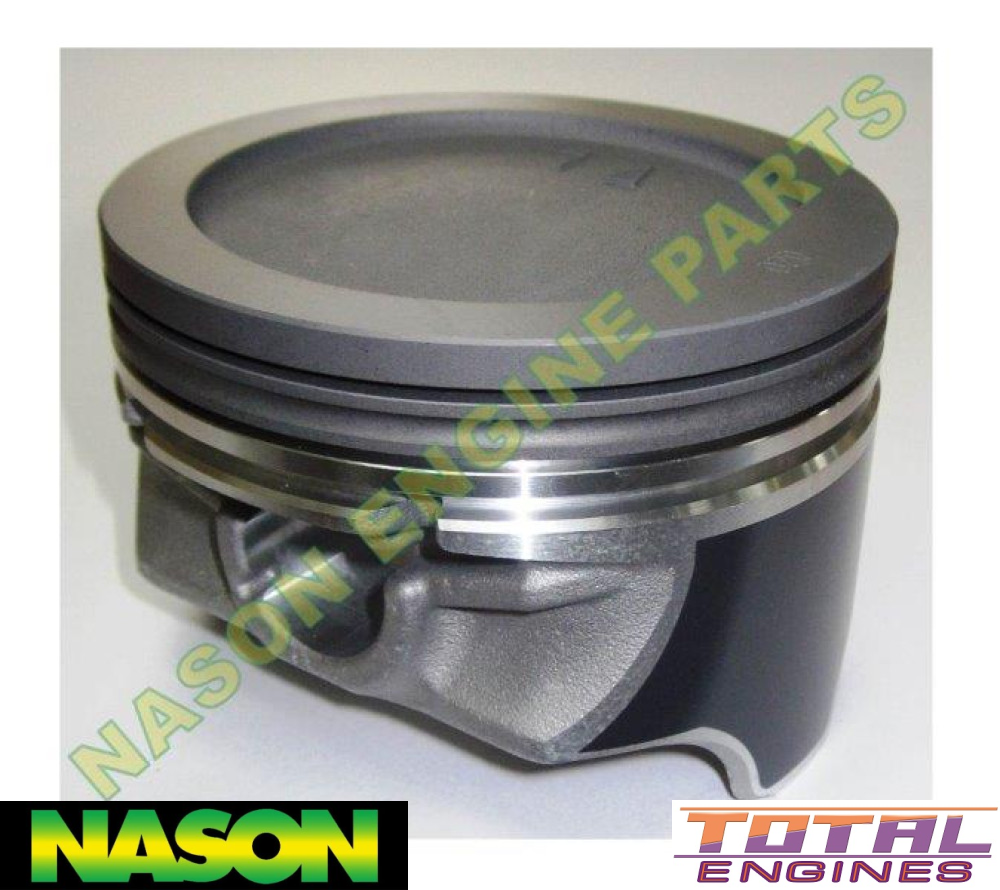

Nason Piston & pin set - 8P1470-0.50

Part
Nason logo

Nason Piston & pin set - 8P1470-0.50

Out Of Stock

Specifications
Piston Set: 8 x Piston & Pins
Std Bore Size: 4.0016"
Size: 0.50mm / 0.020"
Head Type: Dish Top- D Shaped 12cc
Piston Type: Cast Hypereutectic
Length: 2.764"
Comp Height: 1.500"
Pin Size: 0.927" x 2.750"
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2M4860 Or SWI10197

Description

D Shaped Bowl 12cc 3.480" (Stroke) 5.625" (Conrod)

Anodized Crown & Top Ring Land

Graphite Coated Skirts

Replaces 8MKRY9570
