Nason Piston & ring set - 40104610

Specifications
Piston Set:	1 x Piston & Rings
Std Bore Size:	92.50mm
Size:	0.25mm
Head Type:	Combustion Bowl With 4 Valve Relief
Piston Type:	Cast
Length:	55.90mm
Comp Height:	28.10mm

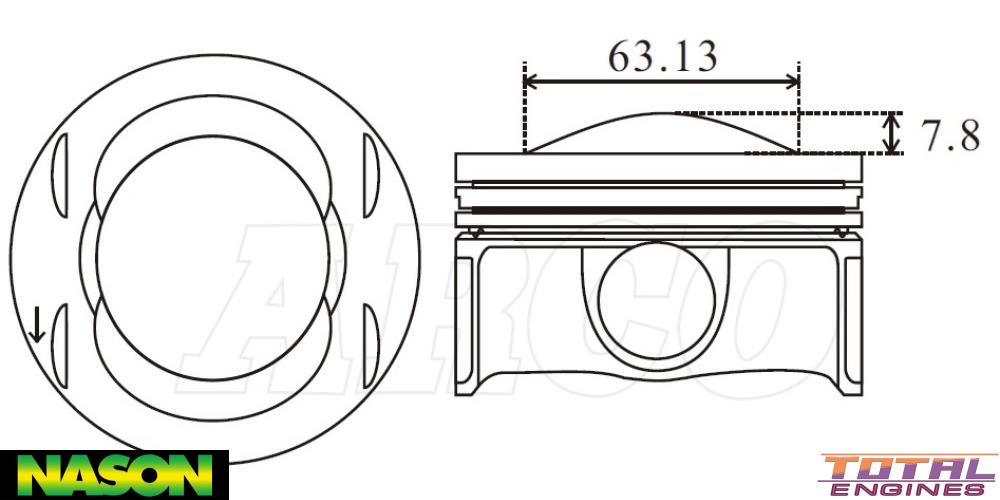

Combustion Bowl OD:	63.13mm
Pin Size:	22.00mm x 57.00mm
Pin Type:	Fully Floating
Skirt Coating:	Yes
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	2.00mm

Description

Single Piston With Rings- 0.25mm Oversize

Piston to Bore
