Nason >> Nason Piston & ring set - 40696600

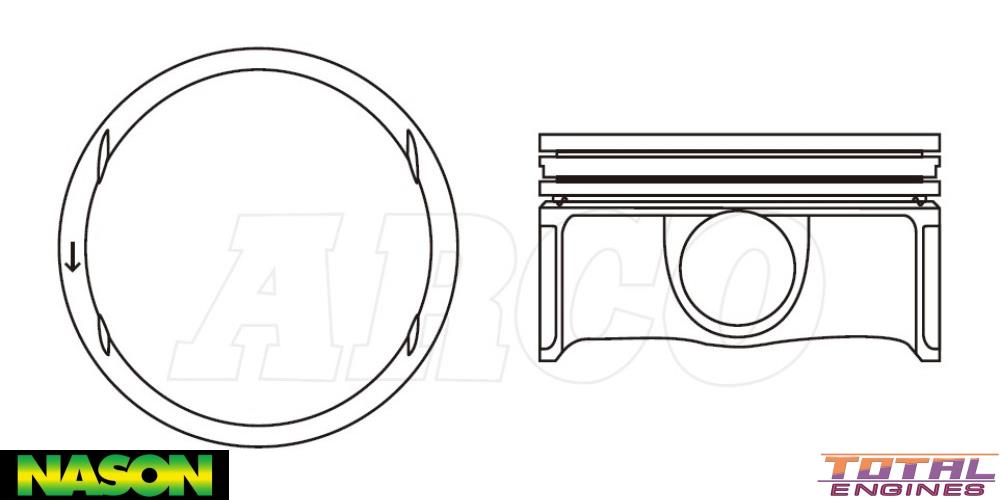

Nason Piston & ring set - 40696600

Part
Nason logo

Nason Piston & ring set - 40696600

Out Of Stock

Specifications
Piston Set: 1 x Piston & Rings
Std Bore Size: 92.50mm
Size: Std
Head Type: Dish Type With 4 Valve Relief
Piston Type: Cast
Length: 48.10mm
Comp Height: 28.10mm
Pin Size: 22.00mm x 57.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.00mm

Description

Single Piston With Rings- STD Size

Combustion Bowl OD

Piston to Bore

Ring Set
