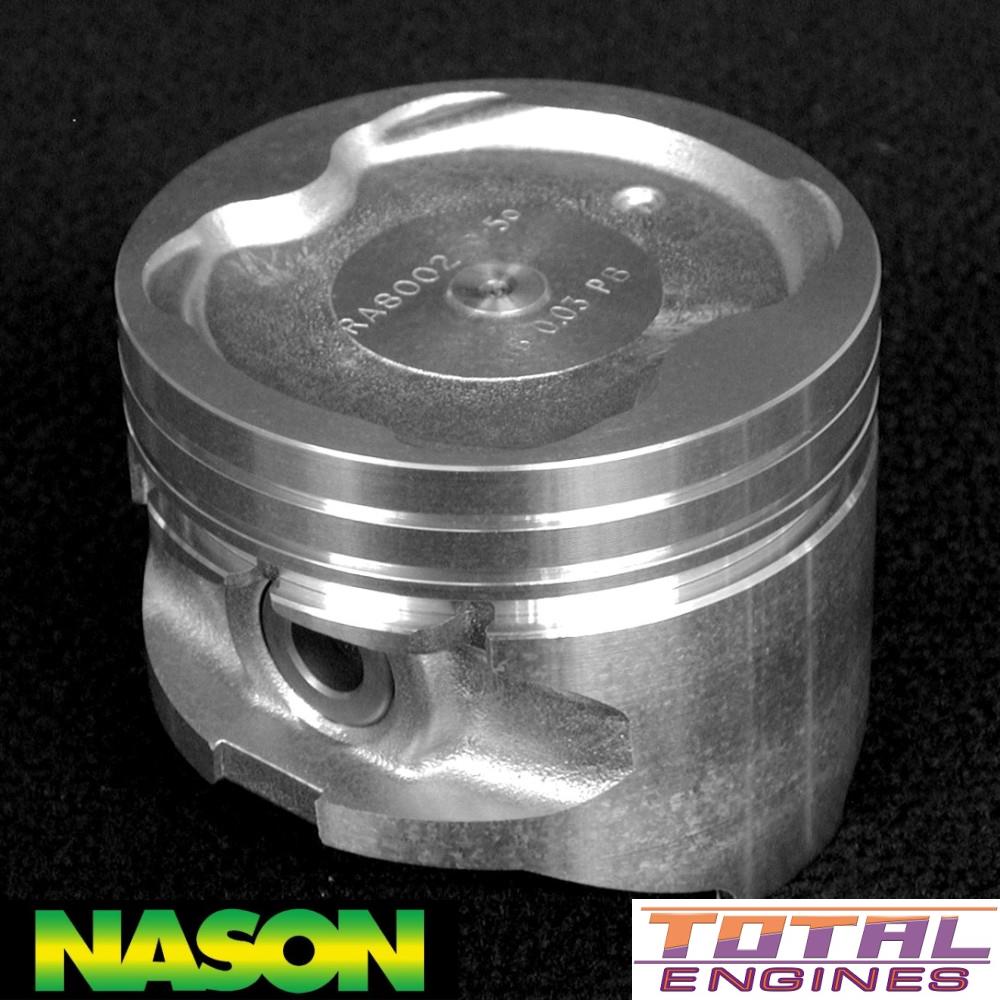

Nason Piston & ring set - 4KRY8002-STD

Specifications
Overall Length:	68.4mm
Comp HT:	35.4mm
Bowl Depth:	-4.4mm
Locking Device:	Press Fit
Pin Dim:	20.0mm Length 66.0mm
Top Ring:	1.5mm
2nd Ring:	1.5mm
Oil Ring:	4.0mm
Recommended Piston To Bore Clearance:	0.04mm / 0.0016in
Measuring Point Dim From Bottom Skirt:	29.0mm / 1.1417in

Description

Suitable between : 1/5/87 TO 1/12/96
