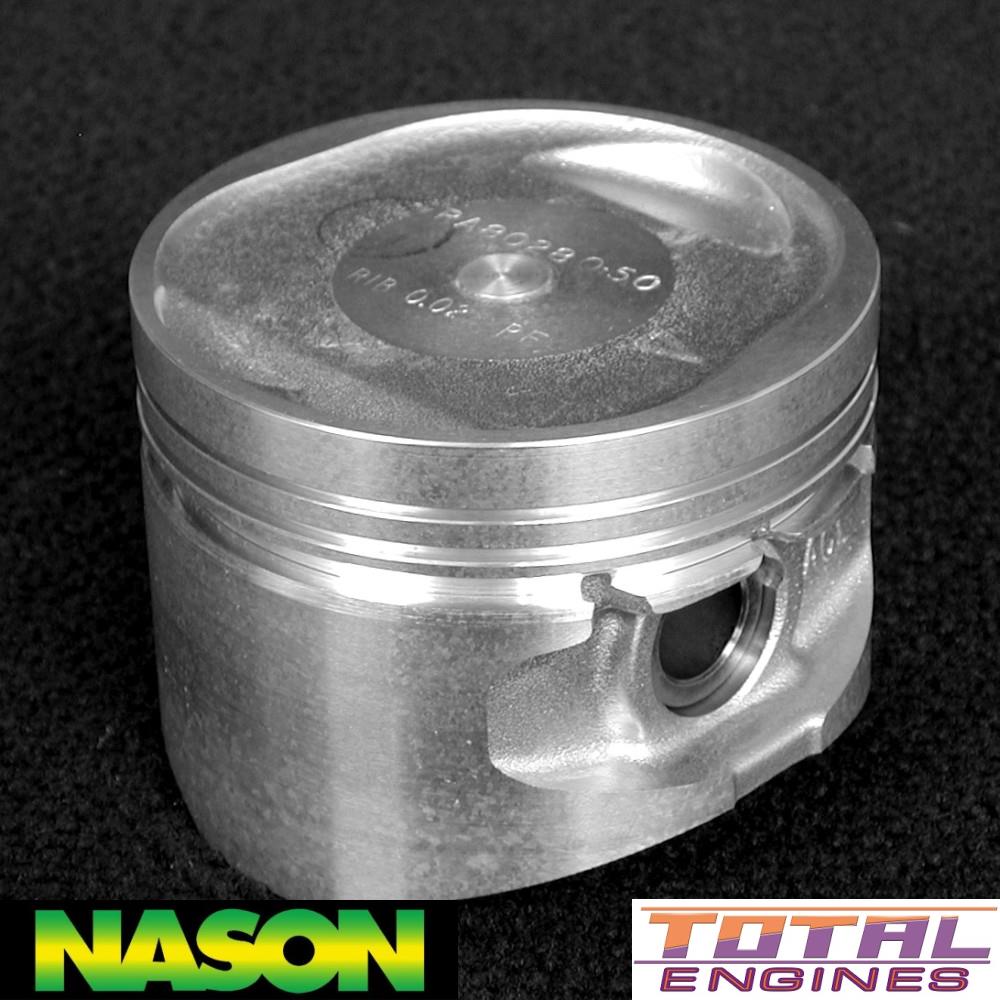

Nason Piston & ring set - 4KRY8028-STD

Specifications
Bowl Volume:	12.3cc
Comp HT:	35.1mm
Combustion Chamber Dia:	12.3mm
Combustion Chamber Depth:	-2.5mm
Total Length:	64.8mm
Locking Device:	Press Fit
Pin Dia:	21.0mm
Top Ring:	1.5mm
2nd Ring:	1.5mm
Oil Ring:	4.0mm
Recommended Piston To Bore Clearance:	0.066mm / 0.0026in
Measuring Point Dim From Bottom Skirt:	17.00mm / 0.6693in

Description

See Notes For Piston Spec's

4KRY8028 Suits Uleaded Fuel Applications
