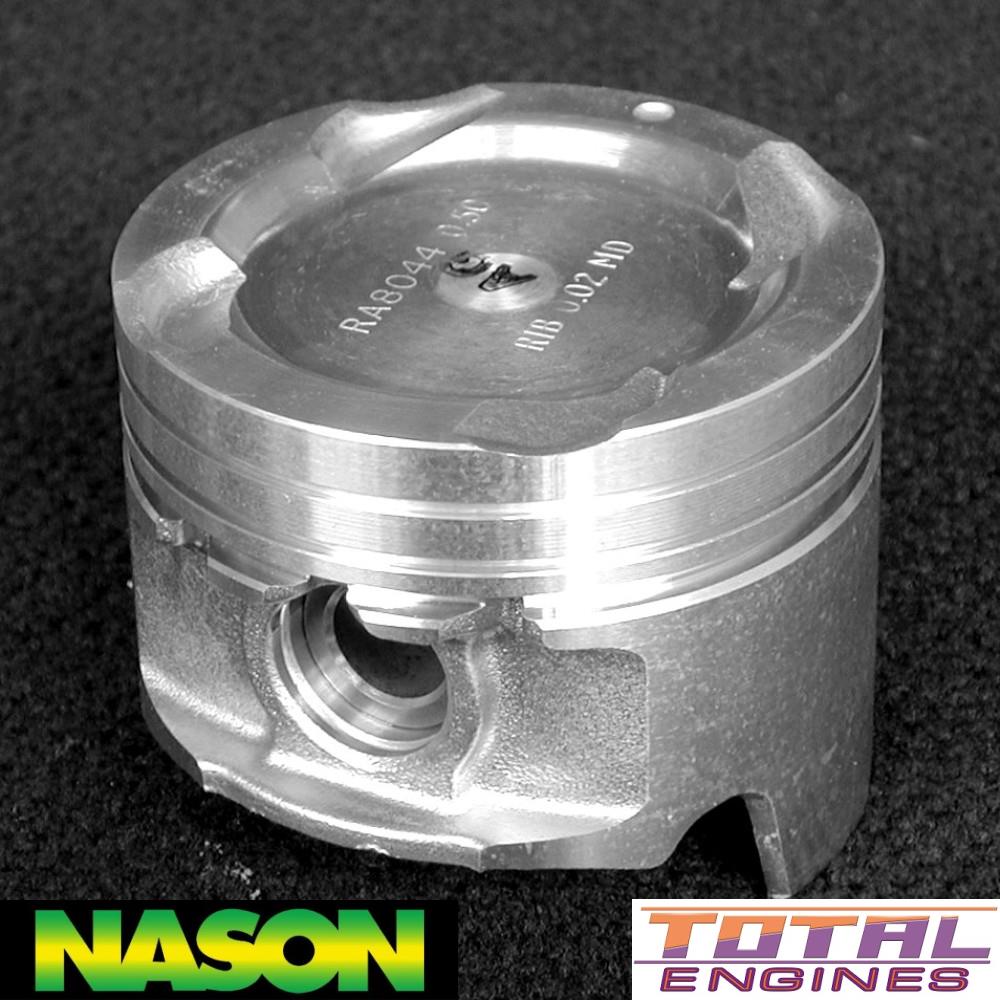

Nason Piston & ring set - 4KRY8044-0.50

Specifications
Recommended Piston To Bore Clearance:	0.056mm / 0.0022in
Measuring Point Dim From Bottom Skirt:	25.60mm / 1.0079in

Description

See Notes

Compression HT : 32.0mm

Combustion Chamber Depth : -3.6mm

Combustion Chamber Dia : 10.5mm

Total Length : 62.7mm

Top Ring : 1.50mm

2nd Ring : 1.50mm

Oil Ring : 3.00mm
