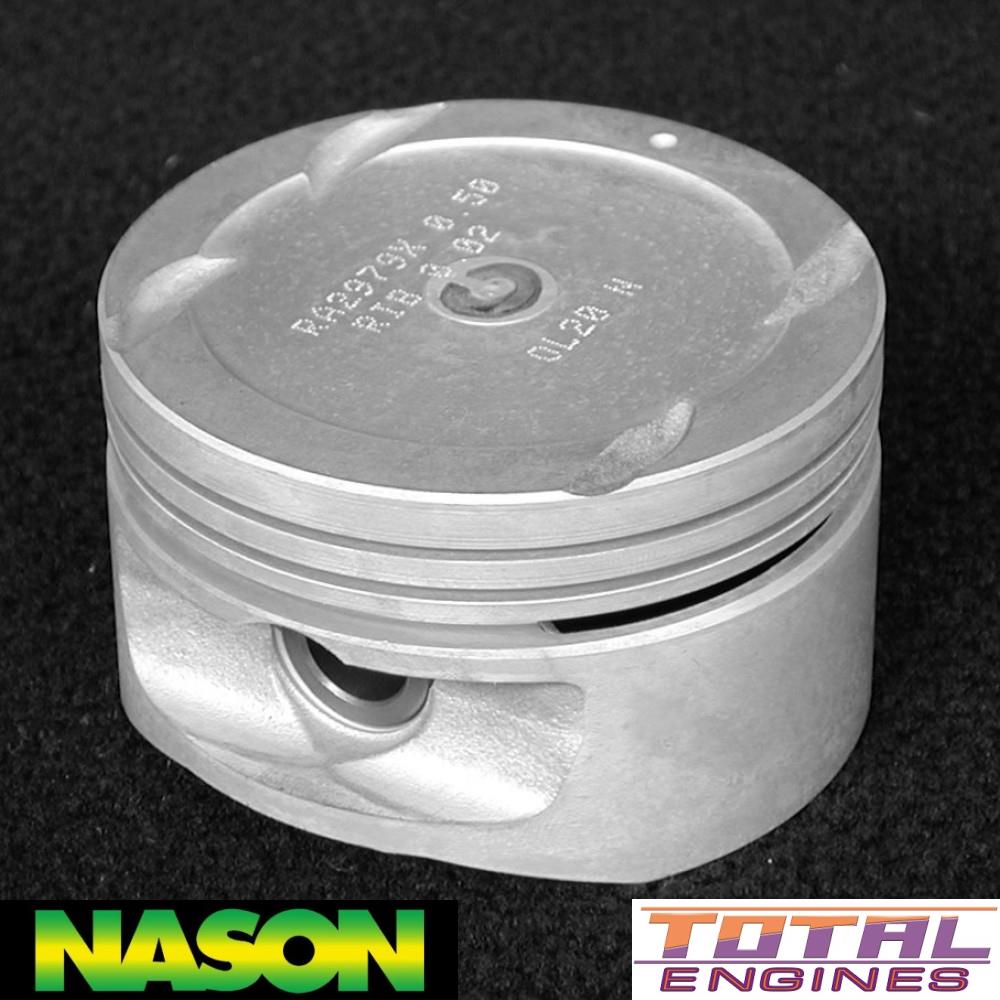

Nason Piston & ring set - 4MKRY2979-0.50

Specifications
Recommended Piston To Bore Clearance:	0.06mm / 0.0024in
Measuring Point Dim From Bottom Skirt:	10.0mm / 0.3937in

Description

Dish Top Piston With 4 Valve Reliefs

27.6mm Comp Height -0.8mm Dish

Top Ring : 1.2mm

2nd Ring : 1.5mm

Oil Ring : 3.0mm
