Nason >> Nason Piston & ring set - PKHD4HB-STD

Nason Piston & ring set - PKHD4HB-STD

Part
Nason logo

Nason Piston & ring set - PKHD4HB-STD

$888.03

Specifications
Piston Set: 4 x Pistons, Pins & Rings
Std Bore Size: 85.40mm
Size: STD
Head Type: Dish top
Piston Type: Cast
Length: 77.00mm

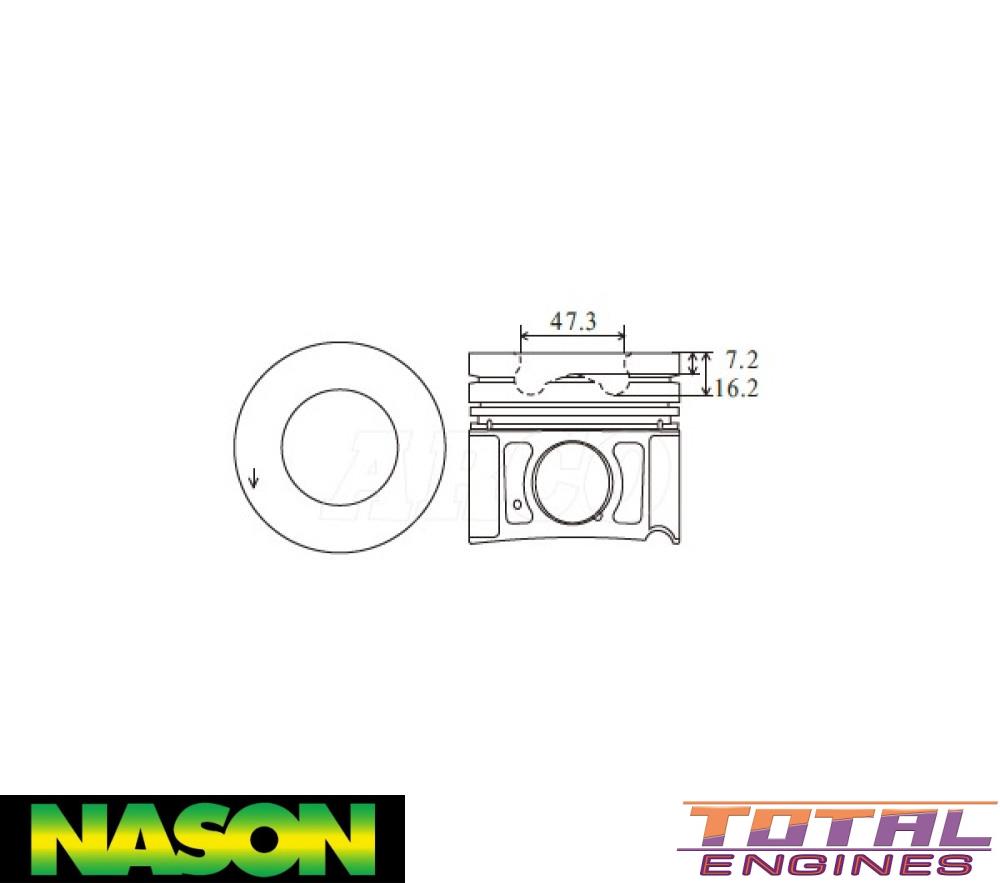

Comp Height: 50.00mm - 7.20mm -16.20mm
Combustion Bowl OD: 47.30mm
Pin Size: 34.00mm x 66.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Double Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm

Description

Alfin insert, Oil gallery cooling, MOS2 coated skirts
