Nason >> Nason Piston & ring set - PKM4D34-A-STD

Nason Piston & ring set - PKM4D34-A-STD

Part
Nason logo

Nason Piston & ring set - PKM4D34-A-STD

$579.15

Specifications
Piston Set: 4 x Pistons, Pins & Rings
Std Bore Size: 104.00mm
Size: STD
Head Type: Dish top
Piston Type: Cast
Length: 112.20mm

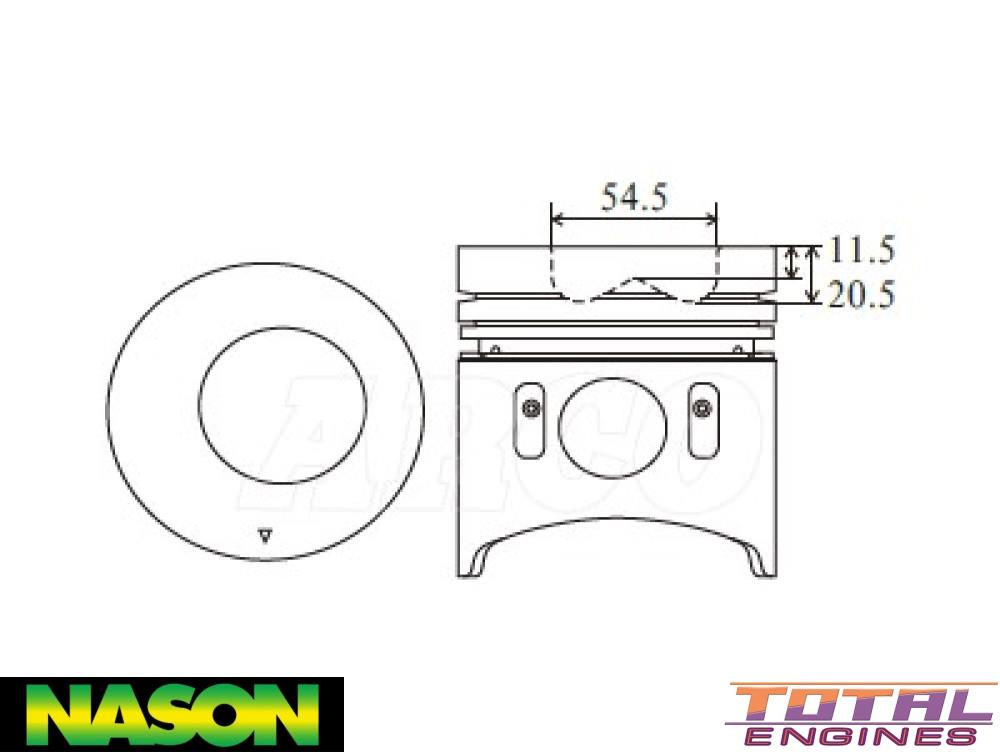

Comp Height: 62.20mm - 11.50mm -20.50mm
Combustion Bowl OD: 54.50mm
Pin Size: 34.00mm x 84.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.80mm Double Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm

Description

Suits 4D34-0A only

Alfin inserts
