Nason Piston & ring set - PKMBOM602-STD

Specifications
Oil Ring Width:	3.00mm
2nd Ring Width:	2.00mm
Top Ring Width:	2.50mm
Piston to Bore:	See Label on Box
Skirt Coating:	Yes
Pin Type:	Full Floating
Pin Size:	28.00mm x 70.00mm

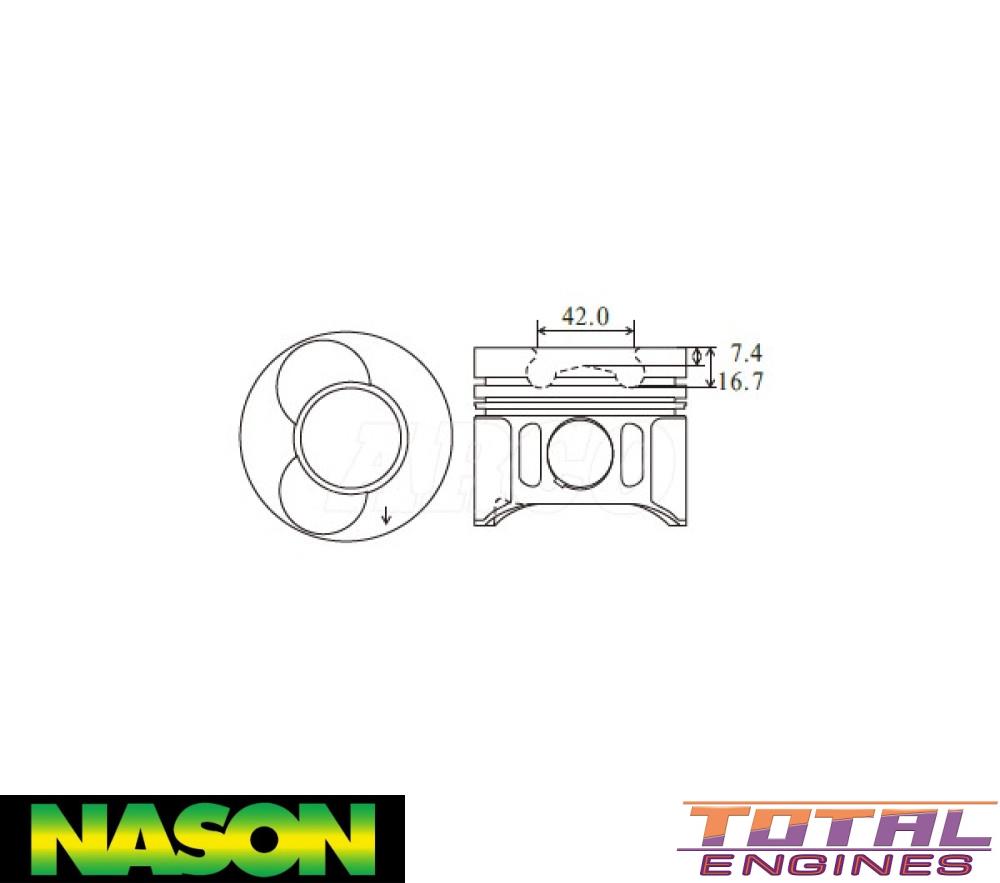

Combustion Bowl OD:	42.00mm
Comp Height:	44.75mm - 7.40mm -16.70mm
Length:	74.75mm
Piston Type:	Cast
Head Type:	Dish top with two valve relief
Size:	STD
Std Bore Size:	89.00mm
Piston Set:	5 x Pistons, Pins & Rings

Description

Suits OM602.980 only

Alfin inserts, Oil gallery cooling, MOS2 coated skirts
