Nason >> Nason Piston & ring set - PKMBOM642R-STD

Nason Piston & ring set - PKMBOM642R-STD

Part
Nason logo

Nason Piston & ring set - PKMBOM642R-STD

Out Of Stock

Specifications
Piston Set: 1 x Piston, Pin & Rings
Std Bore Size: 83.00mm
Size: Std
Head Type: Dish Top 4 Valve Reliefs
Piston Type: Cast
Length: 71.70mm

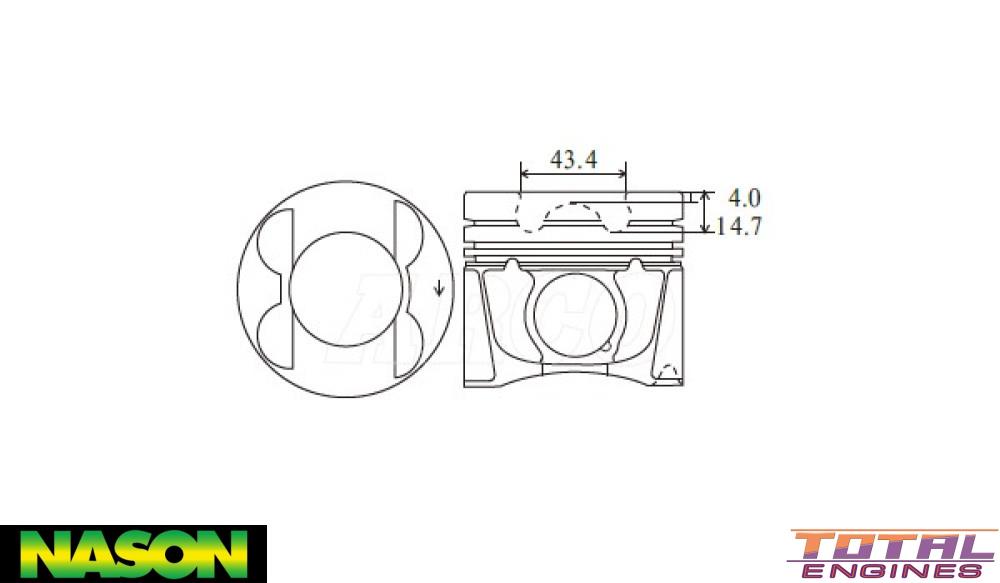

Comp Height: 45.70mm - 4.00mm - 14.7mm
Pin Size: 33.00mm x 66.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Double Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm

Description

See Notes

Suits Right Hand Side Cylinders Only: 1-3-5

Full Engine Set Requires 3 x PKMBOM642R & 3 x PKMBOM642L

Alfin with Oil Gallery
