Nason Piston & ring set - PKRM9T-STD

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	85.00mm
Size:	STD
Head Type:	Dish type with four valve releifs
Piston Type:	Cast
Length:	76.00mm

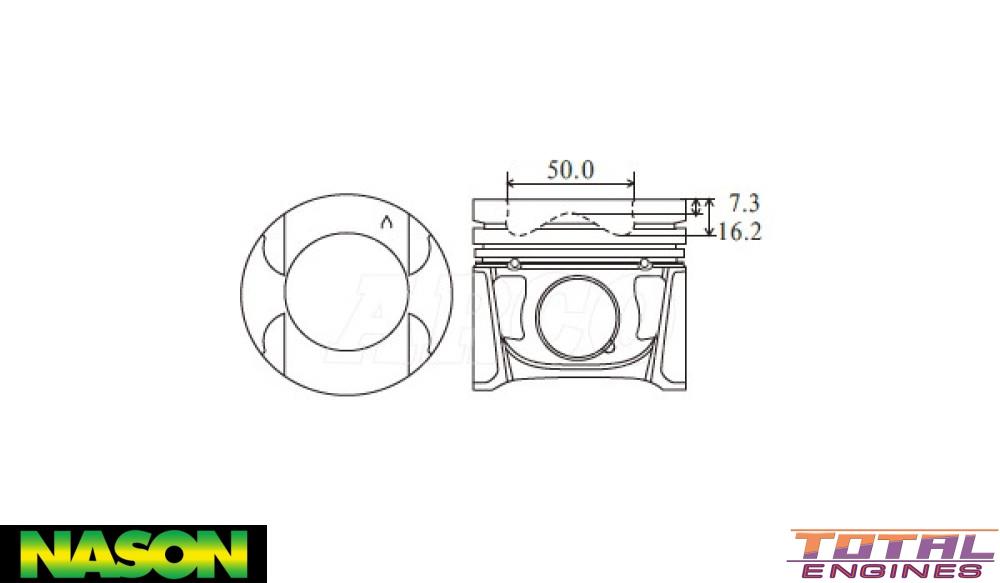

Comp Height:	47.90mm - 16.20mm- 7.30mm
Combustion Bowl OD:	50.00mm
Pin Size:	32.00mm x 65.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Half keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	2.00mm

Description

Alfin insert with oil gallery cooling & MOS2 skirts
